Streamlight ProTac Rail Mount 1 Review: The Complete-Kit Budget Rifle Light (2026)
Is the Streamlight ProTac Rail Mount 1 still worth it? We mounted it, measured it, and ran it in the dark to find out. Spoiler: mostly, yes.
This is one of the most trusted "budget-to-mid" rifle lights on the market. It's not premium, but it's no slouch either. It should be a very attractive option for someone who deep down inside wants a Surefire Mini Scout, but doesn't want to put in a month of overtime to pay for a flashlight.
Reasons to Buy
- Small size ideal for compact rifle builds
- Complete kit in the box: two mounts, tailcap, remote tapeswitch, and even the battery
- Excellent purchase value; we paid $89.99 against a $140 MSRP
- TIR lens balances throw and spill for usable real-world output
- Quick, tool-free mounting with the picatinny thumbscrew clamp
- Lifetime warranty (two-year on switches and electronics)
Reasons to Skip
- 350 lumens falls behind the pack in today's market
- Tapeswitch mounting options aren't great; no native 45-degree position
- Picatinny clamp holds the light a little too far off the handguard
- Moving the M-LOK mount takes tools and T-nuts; not a field swap
This Streamlight ProTac Rail Mount 1 review started with an $89.99 order from Palmetto State Armory and ended with a tape measure, a dark hallway, and a small pile of zip ties. That is the short version of how we test weapon lights around here.

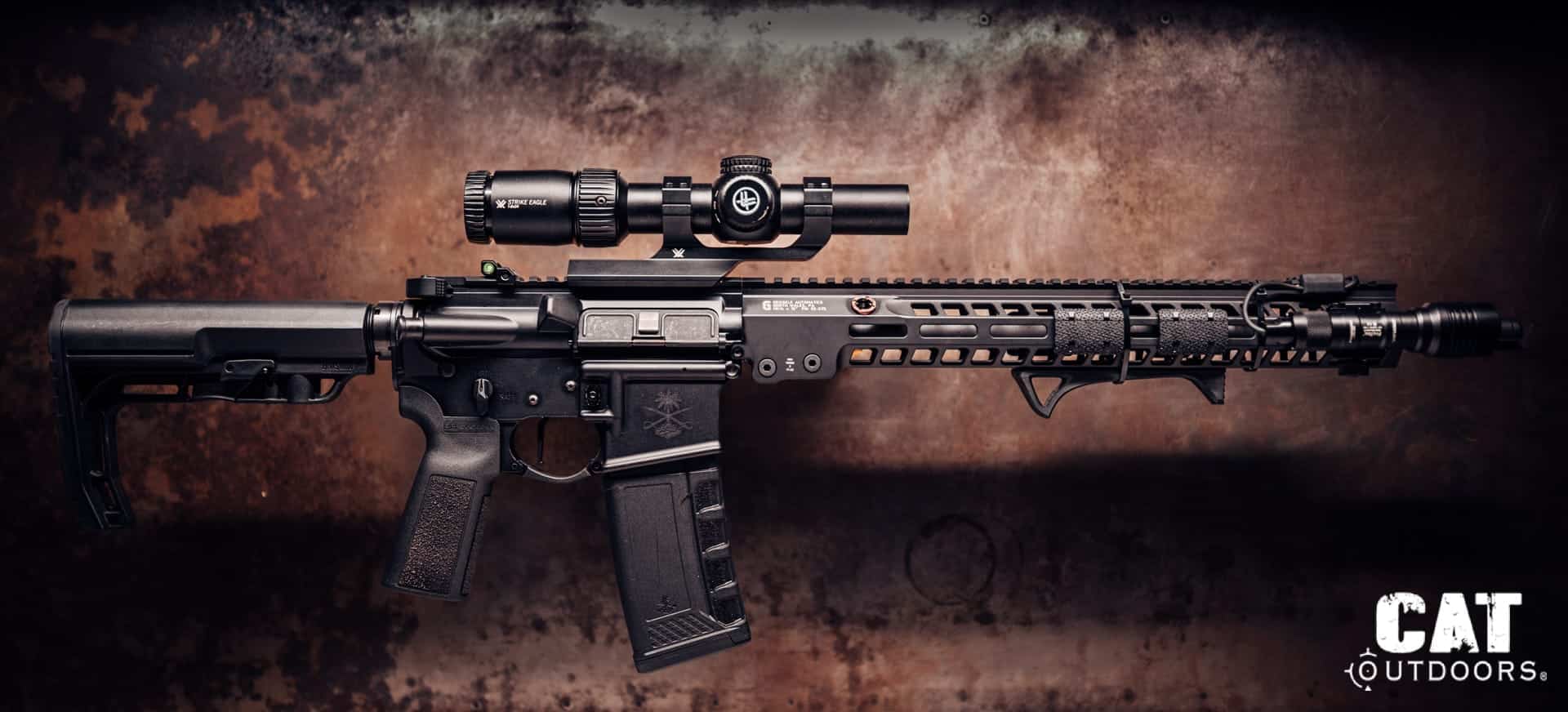

The Rail Mount 1, model 88058, is Streamlight’s compact long gun light: 350 lumens, 12,000 candela, and a box that includes everything down to the battery. It sits in the budget-to-mid lane, built for shooters who want a serious light without a serious price tag.
I mounted it three different ways, measured it against Streamlight’s own numbers, and ran it in the low-light indoor conditions it was built for, the same way we test everything in our best AR-15 flashlights guide. Here’s where it earns its 8/10, and where it doesn’t.
Why You Can Trust This Review
Everything in this review comes from hands-on use. This light was tested and evaluated in low-light, indoor conditions similar to home defense scenarios, which is exactly the job it was built to do.
- We bought this light from Palmetto State Armory for $89.99 in June 2025.
- Tested hands-on in low-light, indoor conditions similar to home defense scenarios.
- Weight and dimensions were measured by us, not copied from the box.
- Mounted and run three ways: thumbscrew picatinny clamp, M-LOK bolt-on, and the remote tapeswitch in multiple positions.
What a Weapon Light Has to Do
I went down the rabbit hole on weapon lights thinking it would be simple: pick a brightness, mount it, done. It turns out there’s a lot more going on.
Lumens tell you overall output, but candela determines how far that light reaches, and the balance between flood and throw changes how usable it is in differing scenarios.
Then you get into switch options, tailcap versus pressure pad, and how that affects the decision of when to activate, or not activate, your light under stress.
Mounting positions pile on next. You’re weighing 1 o’clock against 3 o’clock against 6 o’clock, rail or offset or M-LOK, all while dodging the shadow from your barrel or suppressor. Add a remote pressure pad switch and now cable management starts to matter.
What seems like a basic accessory quickly becomes a dance of tradeoffs, and once you understand those nuances, you realize not all weapon lights are created equal.
The Streamlight ProTac Rail Mount 1 lands squarely in the practical middle of that spectrum. It doesn’t chase extreme output or max candela, but it gives you enough of both to be effective in the environments most civilians operate in: home defense, property use, and close-to-mid range shooting.
First Impressions
They thought of everything… and they put it all in the box.

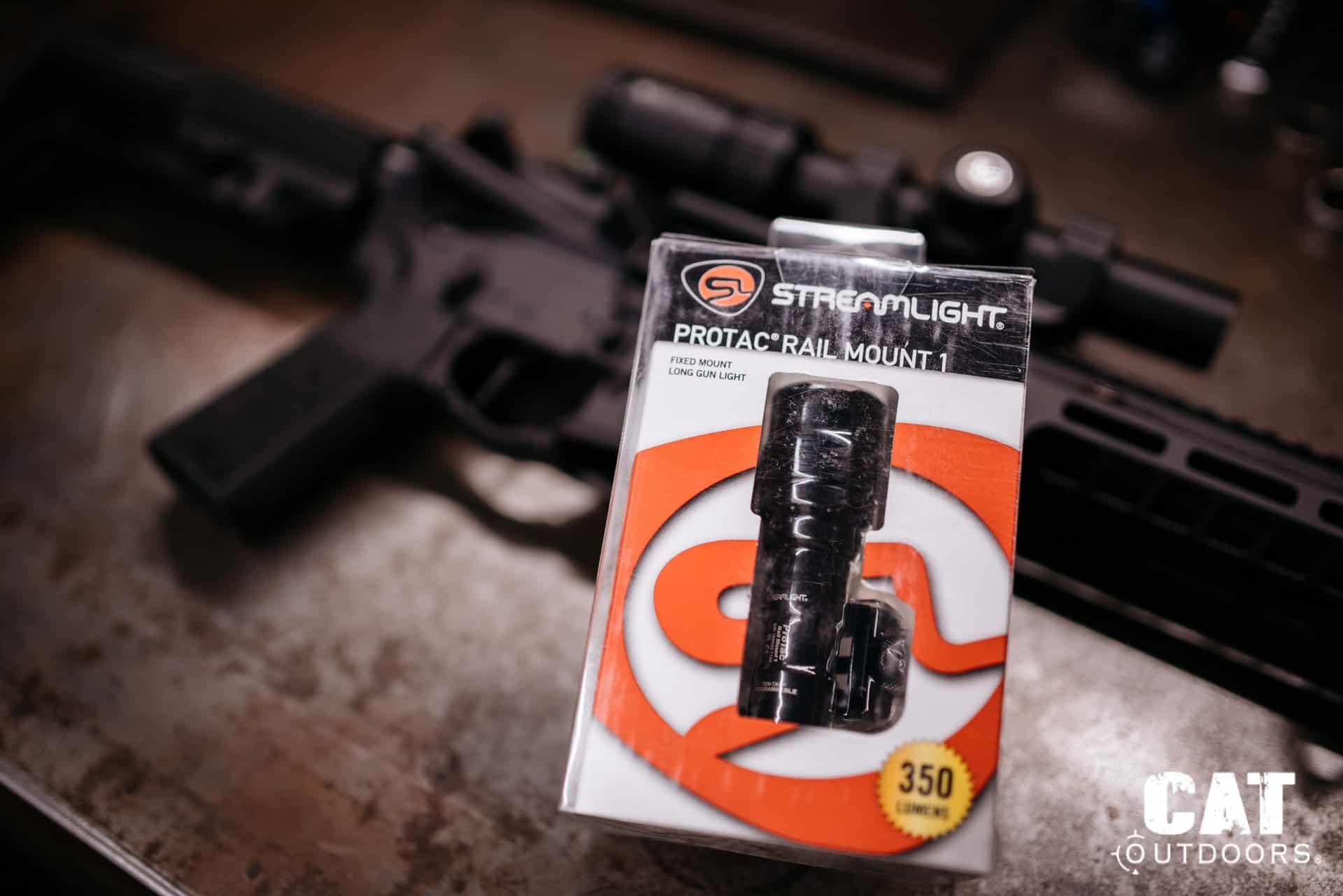

I love it when a brand just gives you everything you need instead of making you buy every piece separately. Yes, even a battery is included. Somebody at Streamlight fought to get a battery in that box, and I’d buy them a beer.

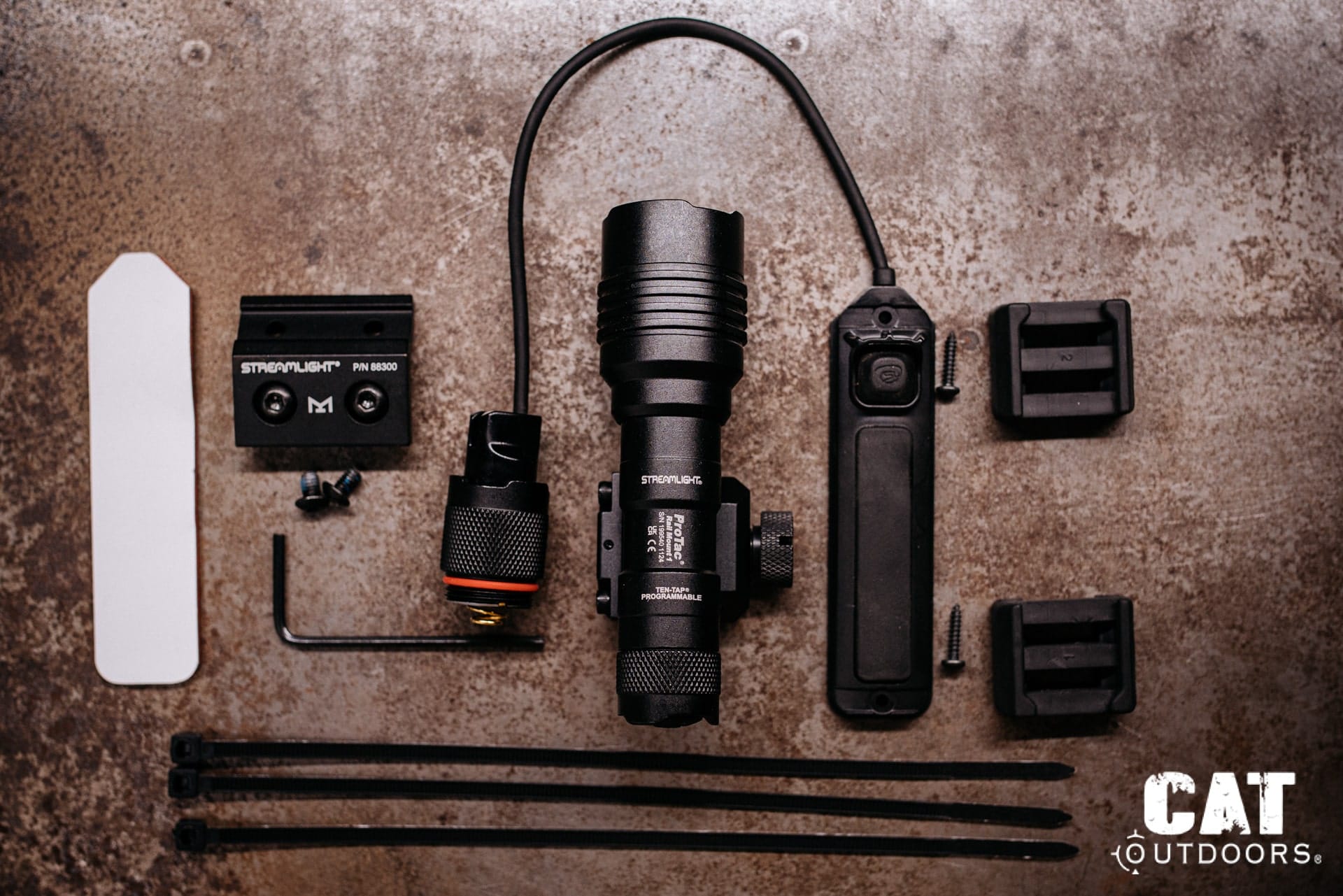

Here’s the full inventory: the light, two different mounts (a thumbscrew picatinny rail clamp and an M-LOK bolt-on), a standard tailcap, a remote tapeswitch, and THREE different ways to mount that tapeswitch, from plastic rail clips to a pre-cut strip of two-sided adhesive to a bag of zip ties. An allen key rides along for the M-LOK hardware.
I don’t love the mounting options for the tapeswitch… but at least they include zip ties in the package for mounting it in custom ways. I’ll come back to this later.
ProTac Rail Mount 1 Specs: Measured vs. Stated
The ProTac mostly checks out. Weight matched Streamlight’s stated 4.3 ounces on the nose, but my tape puts the light at 4.5 inches long against the stated 4.25. Small miss, no practical consequence, and exactly why we measure. The table below has the rest, including the battery runtimes from Streamlight’s own data sheet.
| Attribute | Measured | Manufacturer stated |
|---|---|---|
| Weight | 4.3 oz | 4.3 oz |
| Dimensions | 4.5 in L x 1.25 in D | 4.25 in L |
| Material / finish | Machined anodized aluminum | Machined anodized aluminum |
| Output | Not independently measured | 350 lumens, 12,000 candela |
| Battery life | Not independently timed | Hi: 1.75 hrs / Low: 14.5 hrs |
| Included hardware | Both mounts, tapeswitch, tailcap, adhesive, zip ties, allen key, battery | Mounting screws, allen key |
| Warranty | Lifetime (2-year on switches and electronics) | Lifetime (2-year on switches and electronics) |
| Origin | Assembled in USA, parts sourced from China | Assembled in USA, parts sourced from China |
| Price | $89.99 paid (June 2025) | $140 MSRP |
Light Output in the Real World
At 350 lumens, it’s not the leader of the pack, but don’t let that stop you.
Most people look at lumens and stop there. Brightness doesn’t tell you how a light performs, though. Beam shape does.
The ProTac Rail Mount 1 uses a TIR (Total Internal Reflection) lens, not a traditional reflector. Traditional flashlight reflectors create a wider flood, which limits throw distance and loses overall intensity by spreading out the beam. Streamlight’s TIR lens focuses the light into a bright center spot while still allowing a usable amount of side spill for peripheral illumination.
Too much throw creates tunnel vision. Too much spill loses intensity where you need it.
This matters because positive identification isn’t about lumens. It’s about what you can see when it counts.

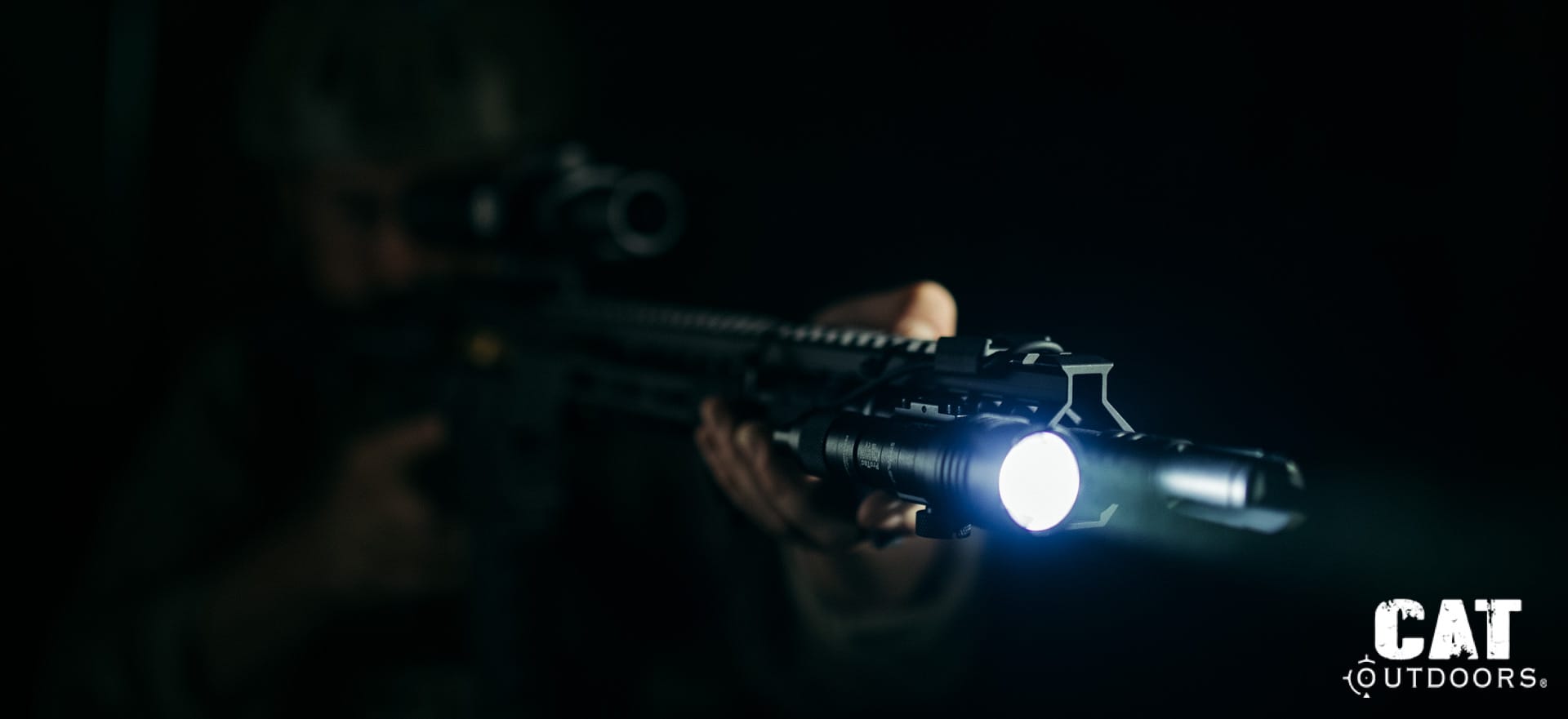

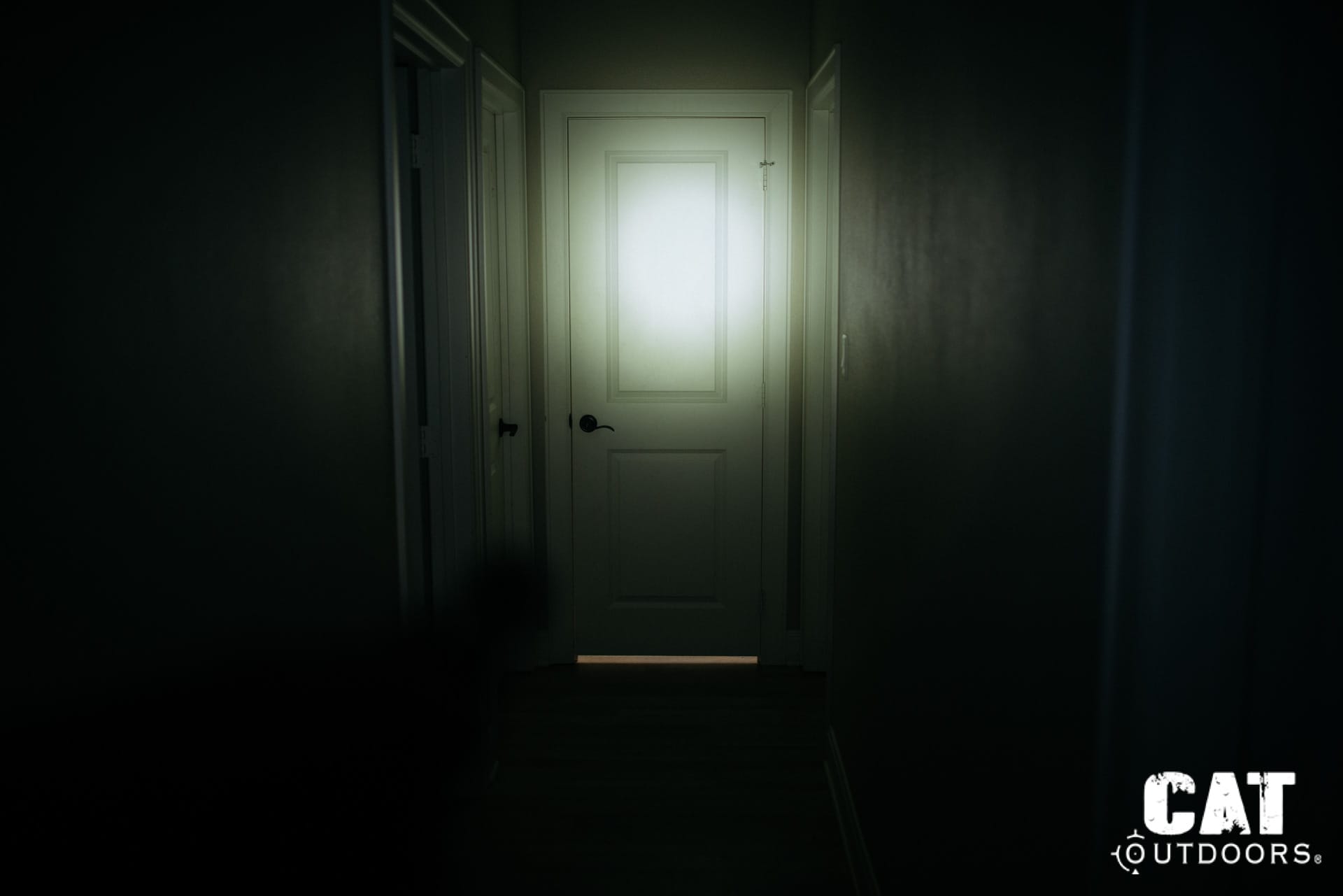

That’s where the 12,000 candela comes in. In my low-light indoor testing, the ProTac strikes a decent balance by increasing the throw distance in a real-world meaningful way. You get more usable output from a lower power, more affordable light.
Yes, 350 lumens falls behind the pack in a market full of 1,000-lumen lights. But indoors, at the distances inside a home, 350 lumens with this beam pattern is plenty. There are lots of more powerful lights available, and there are always tradeoffs to think about.

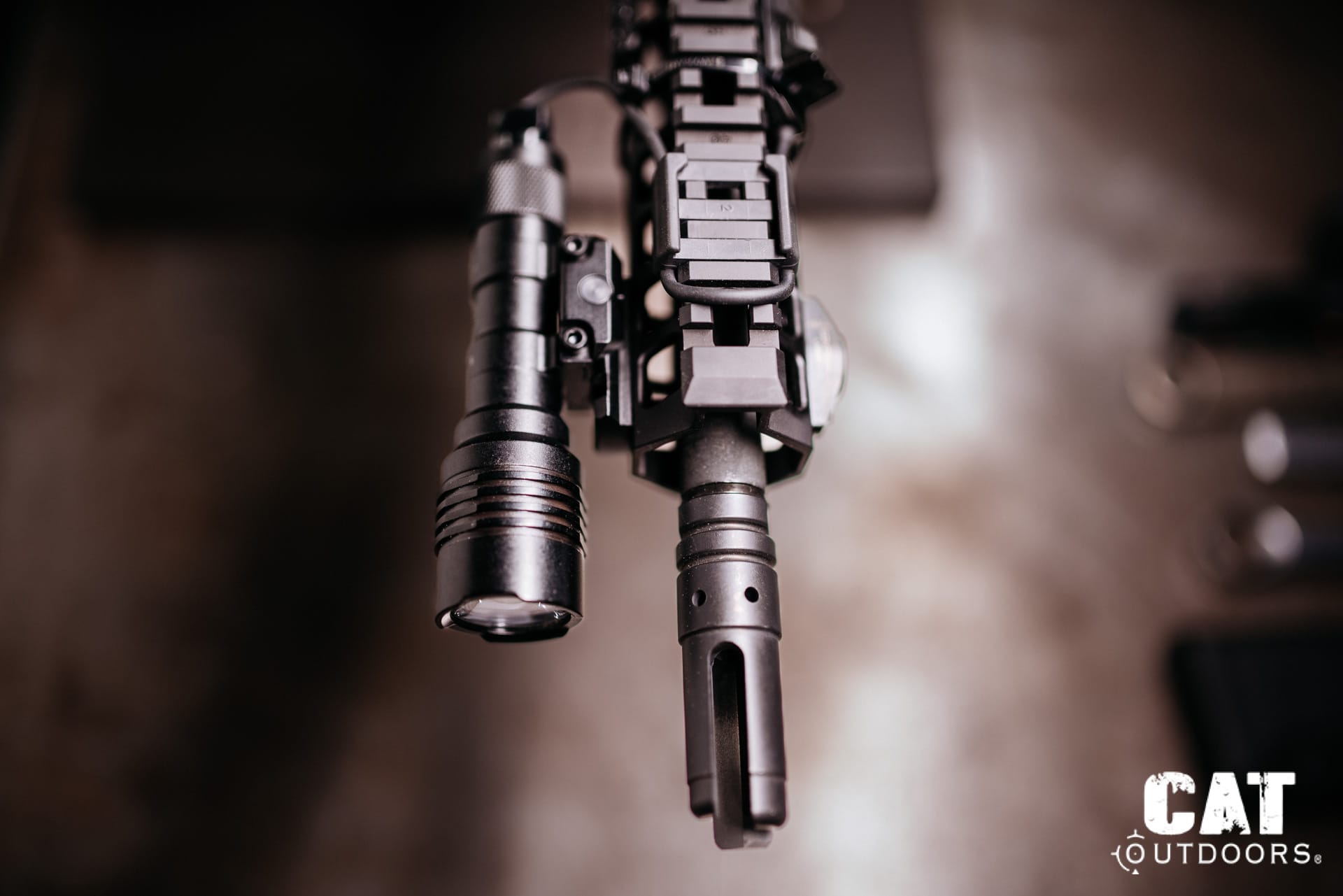

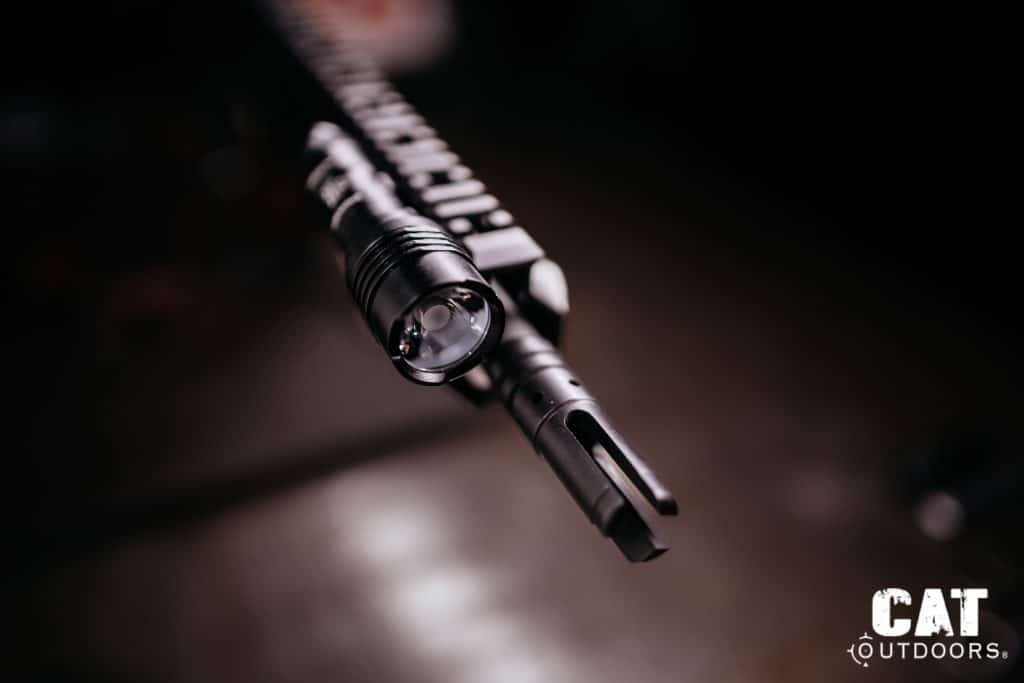

Mounting: Three Ways to Run It

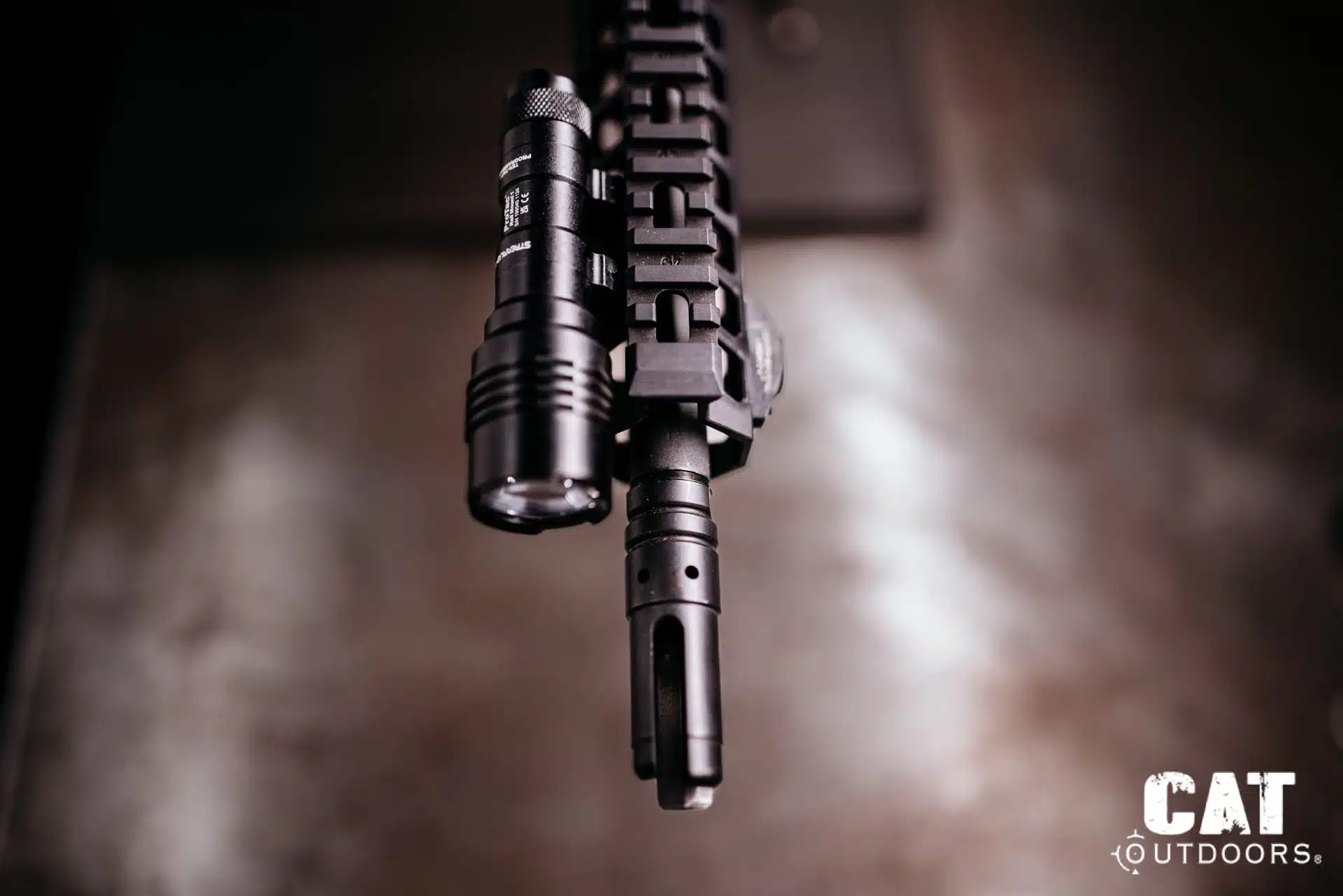

Using the picatinny clamp, mounting the light is quick and simple. No tools, no hassle… but there’s also no adjustability. What you get is what you get.

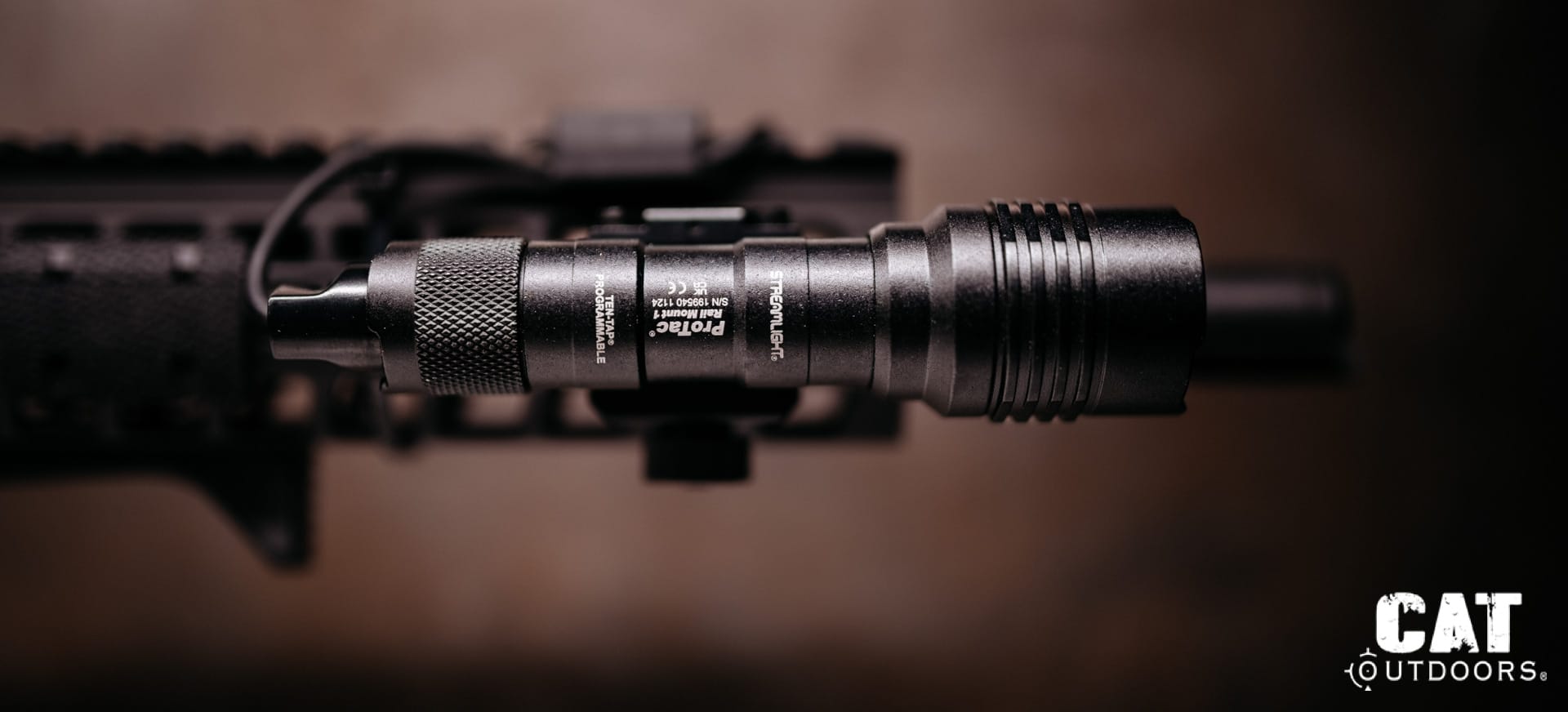

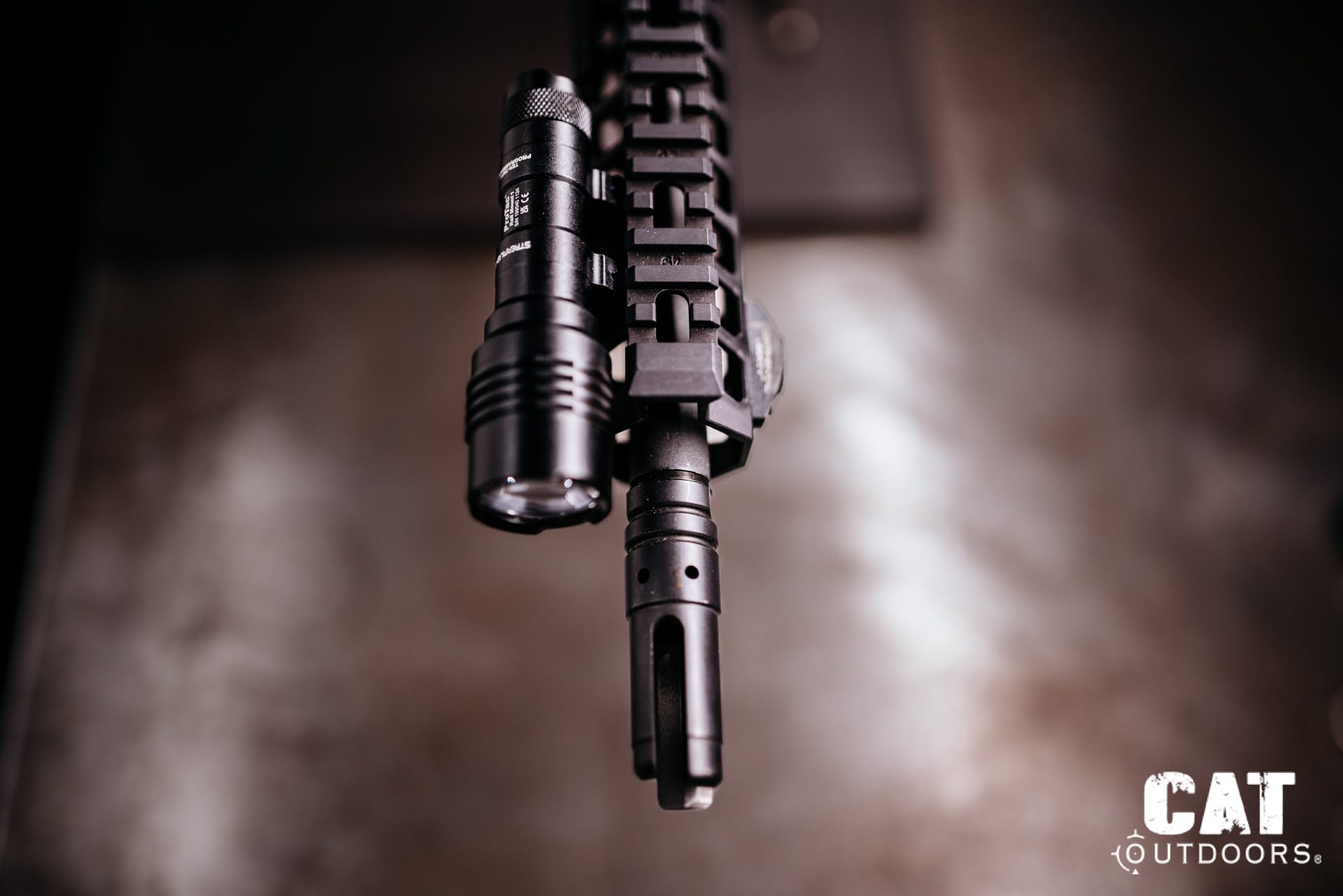

The thumbscrew clamp is my preferred method of mounting this light, but in my opinion the position sits just a little too far off the handguard. Not a dealbreaker, but enough to notice, especially when trying to keep things tight and streamlined. I wish it either allowed some pivot or had a slimmer profile.

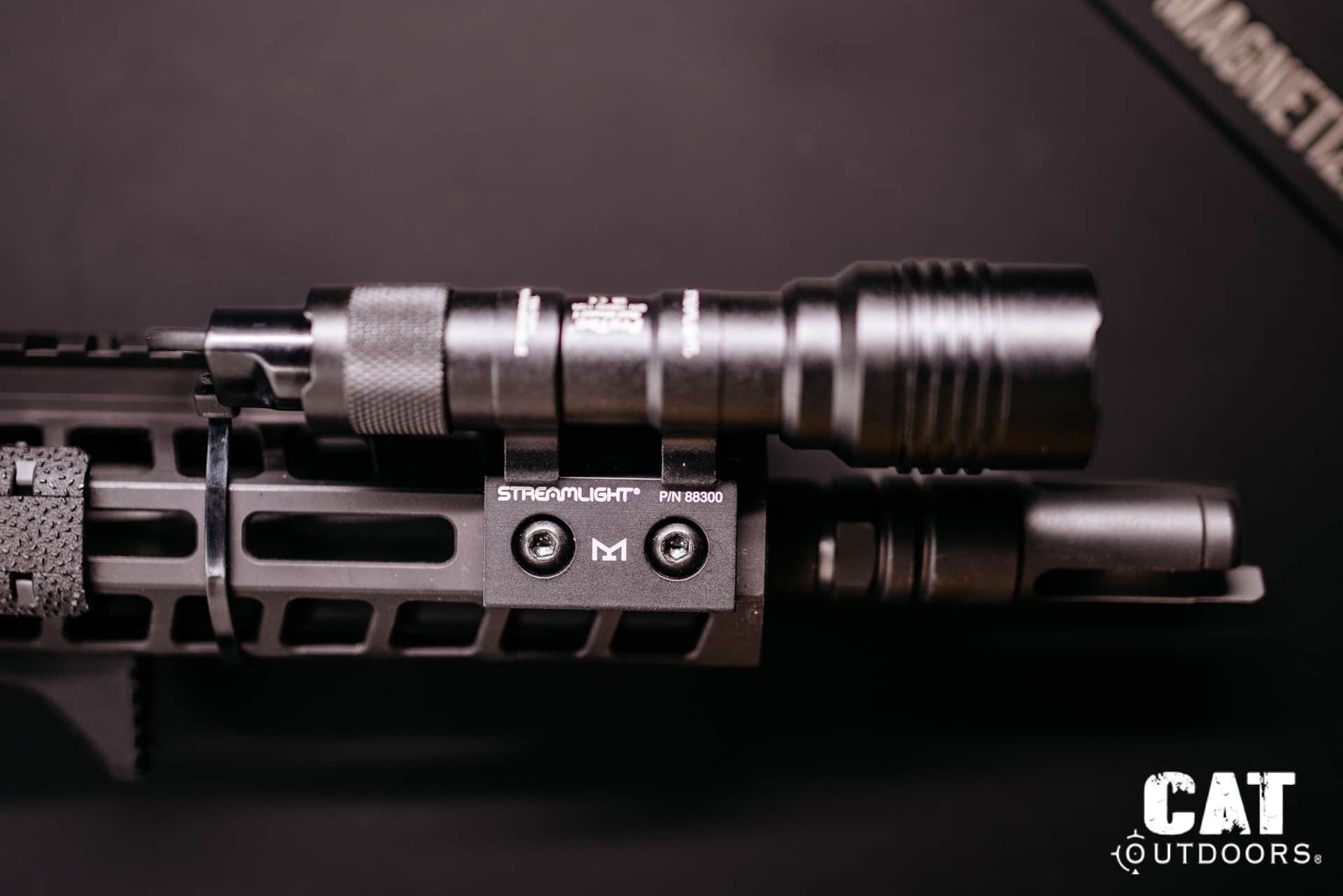

The M-LOK mount fixes the profile issue. It pulls the light in tighter and feels more dialed. But now you’re trading convenience for stability: if you want to move it, you’re grabbing tools and dealing with T-nuts again, which is not something you can conveniently do in the field. Swapping the mount in my shop, with my tools and my work table, took about 2 or 3 minutes.
Then there’s the third way to run it: the remote tapeswitch, which swaps in for the tailcap. There are THREE different methods of mounting the switch, and to be honest, I don’t love any of them.

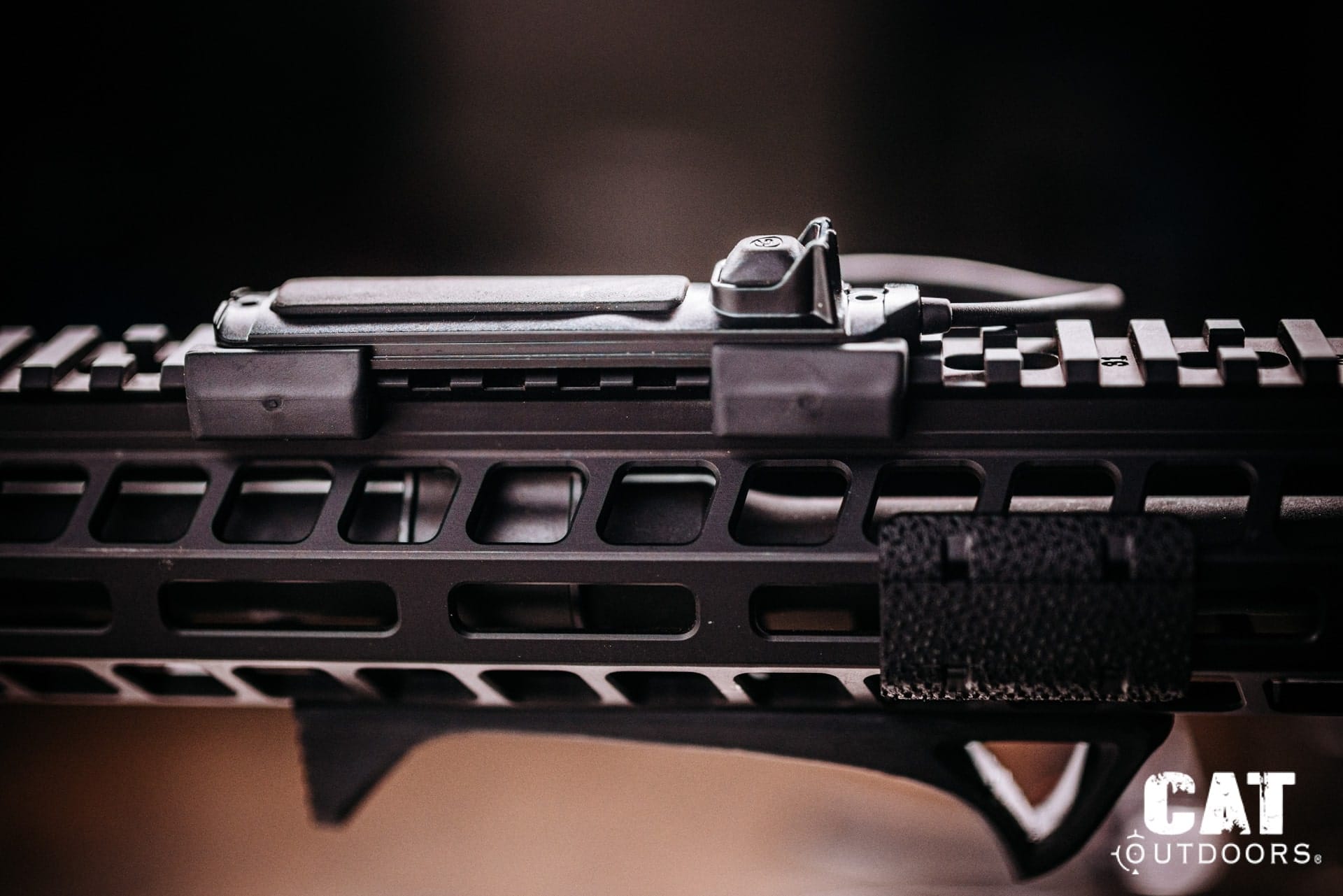

Method 1 is the included plastic pic rail clips, which the switch slides into. It’s fairly easy to mount and fairly clean looking, and the included zip ties hold the switch securely in place. But anytime you want to change position, you’re cutting zip ties and replacing them.

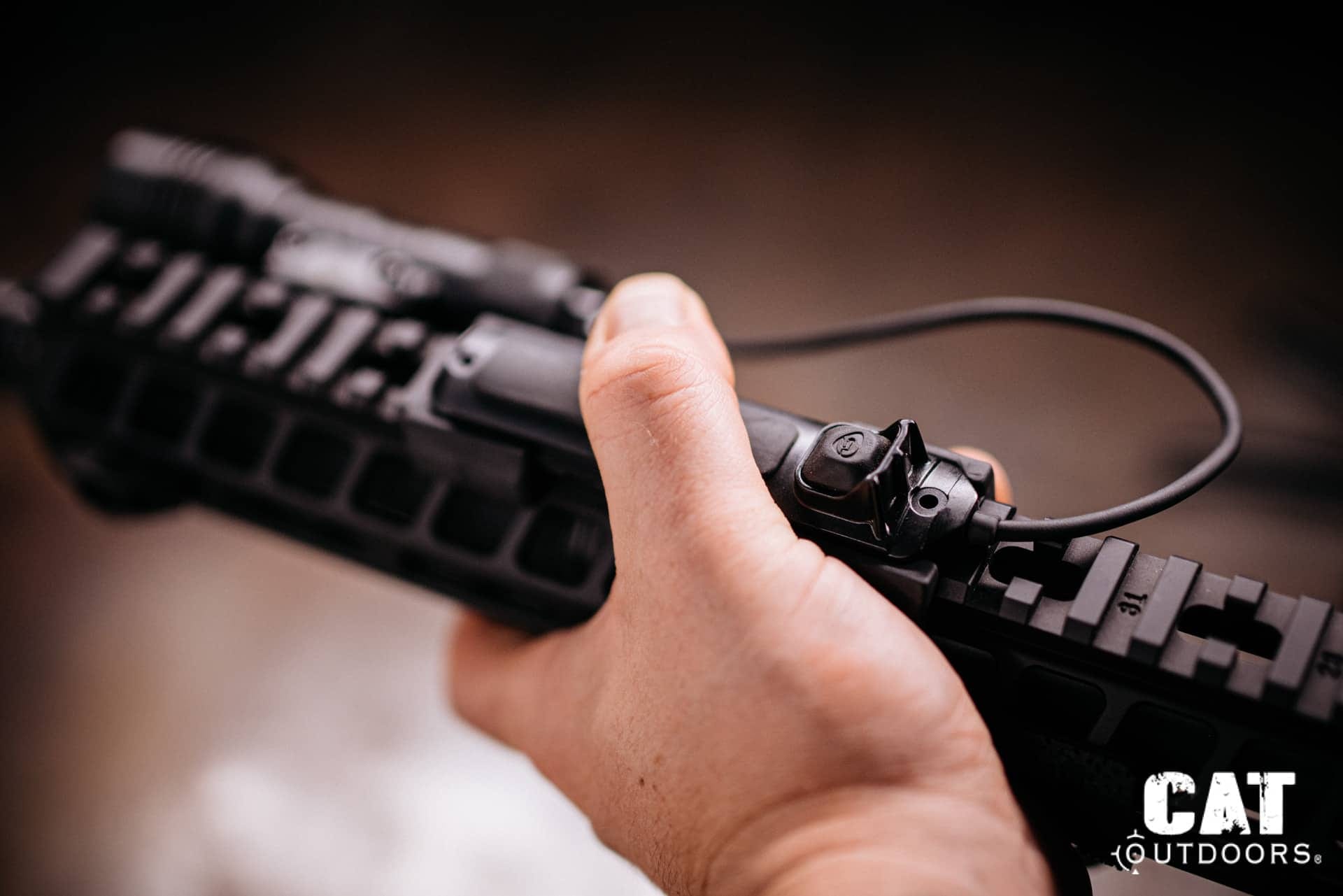

There’s a bigger problem than zip tie economics. Like most shooters, when I grip my rifle I like to keep my thumb wrapped over the top, and if the switch sits where my thumb naturally lands, there’s a constant risk of activating the light unintentionally. Mounting it on the right or left side doesn’t fix that; those are still positions where palm pressure or fingertips can activate it by accident.
Call me picky, but there’s no function of my rifle setup that I want getting activated without my intentional decision to do so. I could keep my thumb grip to the side, but I prefer the positive control of having my thumb wrapped over the top.

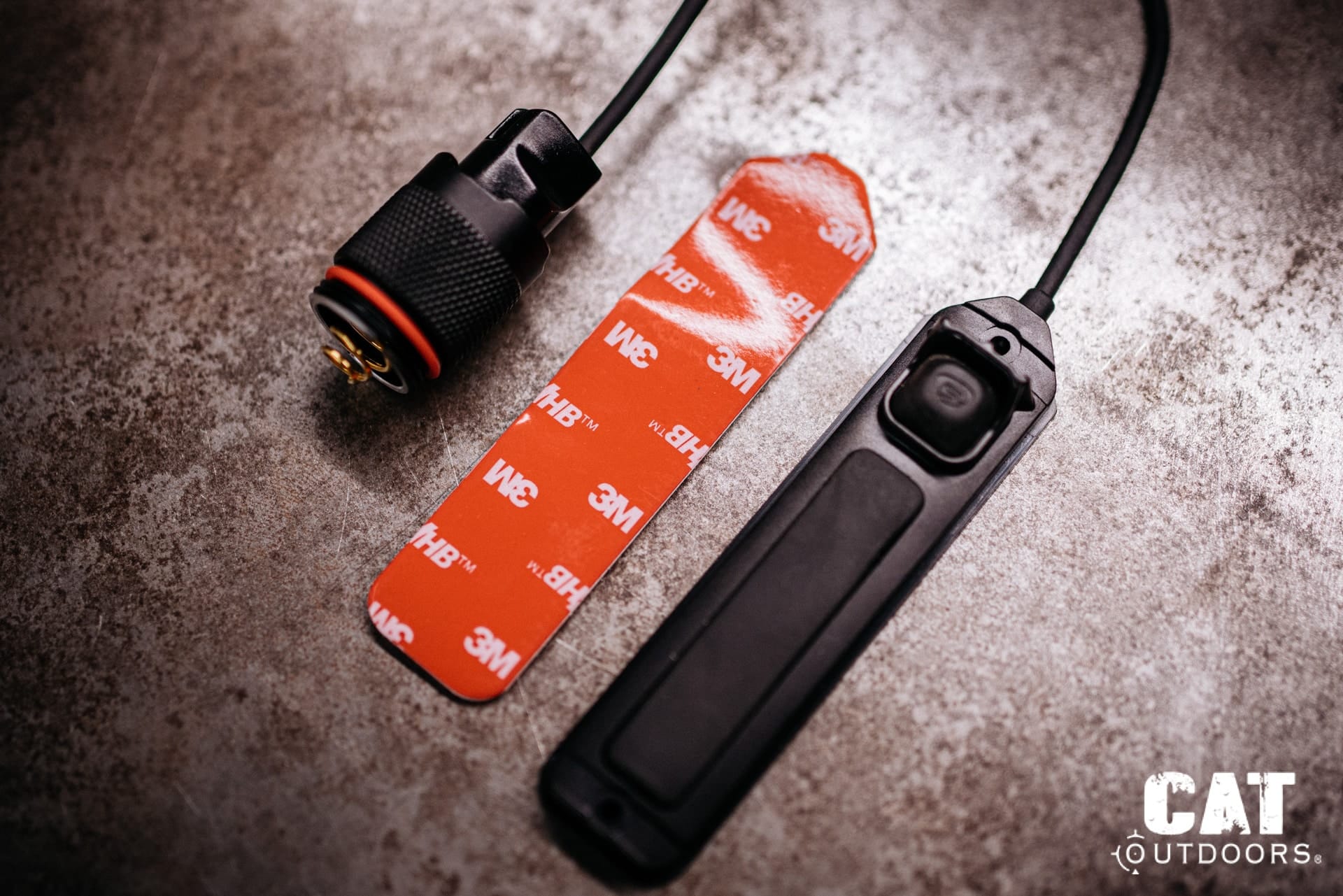

Method 2 is the included strip of 2-sided adhesive, pre-cut to match the shape of the switch. It’s a nice included option, but I can’t imagine a scenario where I would want it. There’s not much solid surface area on my M-LOK rail for it to adhere to, and I don’t want the switch attached in a way that isn’t easy to adjust or remove. For me, I will stick that sticky strip in my drawer of miscellaneous accessories and save it for something else.

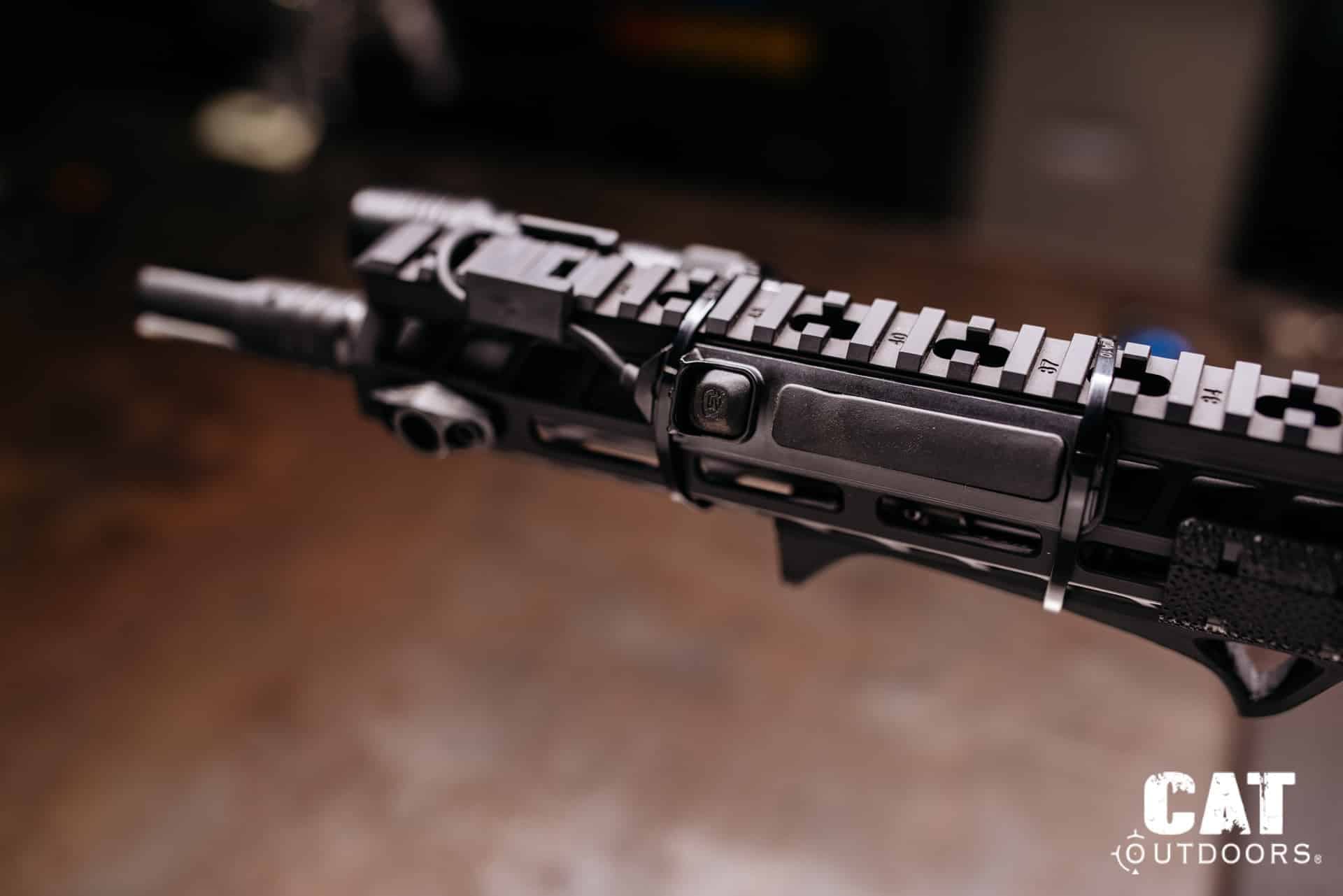

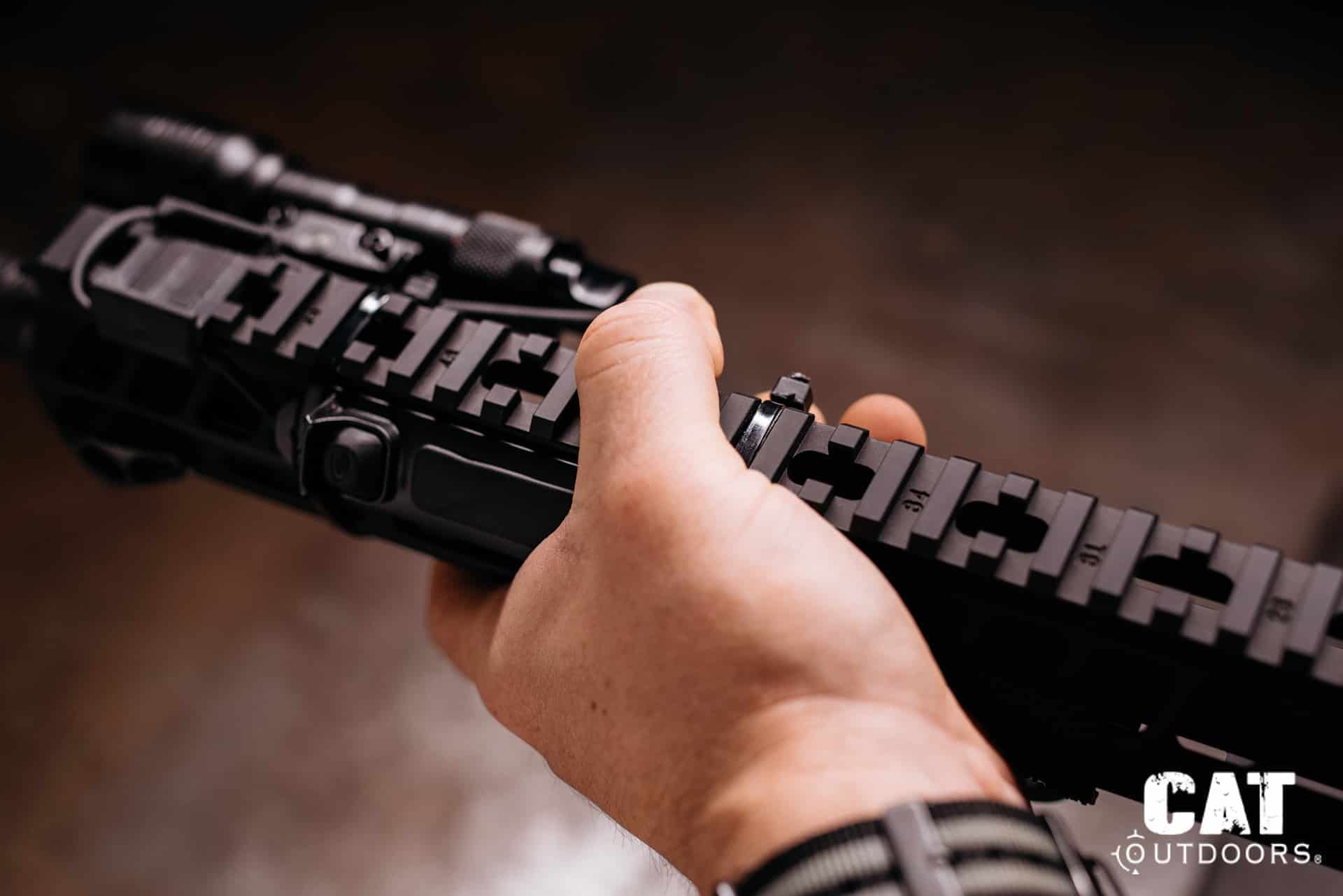

Method 3 is my choice: I zip tied the switch at the 10 o’clock position. This keeps my preferred grip on the rifle, puts the switch conveniently in the space between my thumb and forefinger, and prevents any unintentional activations.
It works, but it’s still a workaround, not a real solution. I think this light should have been designed with that position in mind, with a direct bolt-on option for it.
Streamlight’s ecosystem is fairly closed, and most mounting solutions force you into top, side, or bottom rail positions. Aftermarket fixes exist, a Magpul offset mount can cant the light itself toward that angle, but options that improve retention usually mean an additional plate or bracket that adds bulk, while slimmer setups sacrifice stability. There’s no clean, purpose-built solution for this natural 45-degree in-between position, so if you’re like me and want that option, you’re going to have to get creative with your setup.
If Streamlight is taking requests: a native 45-degree mounting option, a better tapeswitch ecosystem, and a slightly slimmer picatinny clamp. That’s the whole wish list.
Running the Tapeswitch

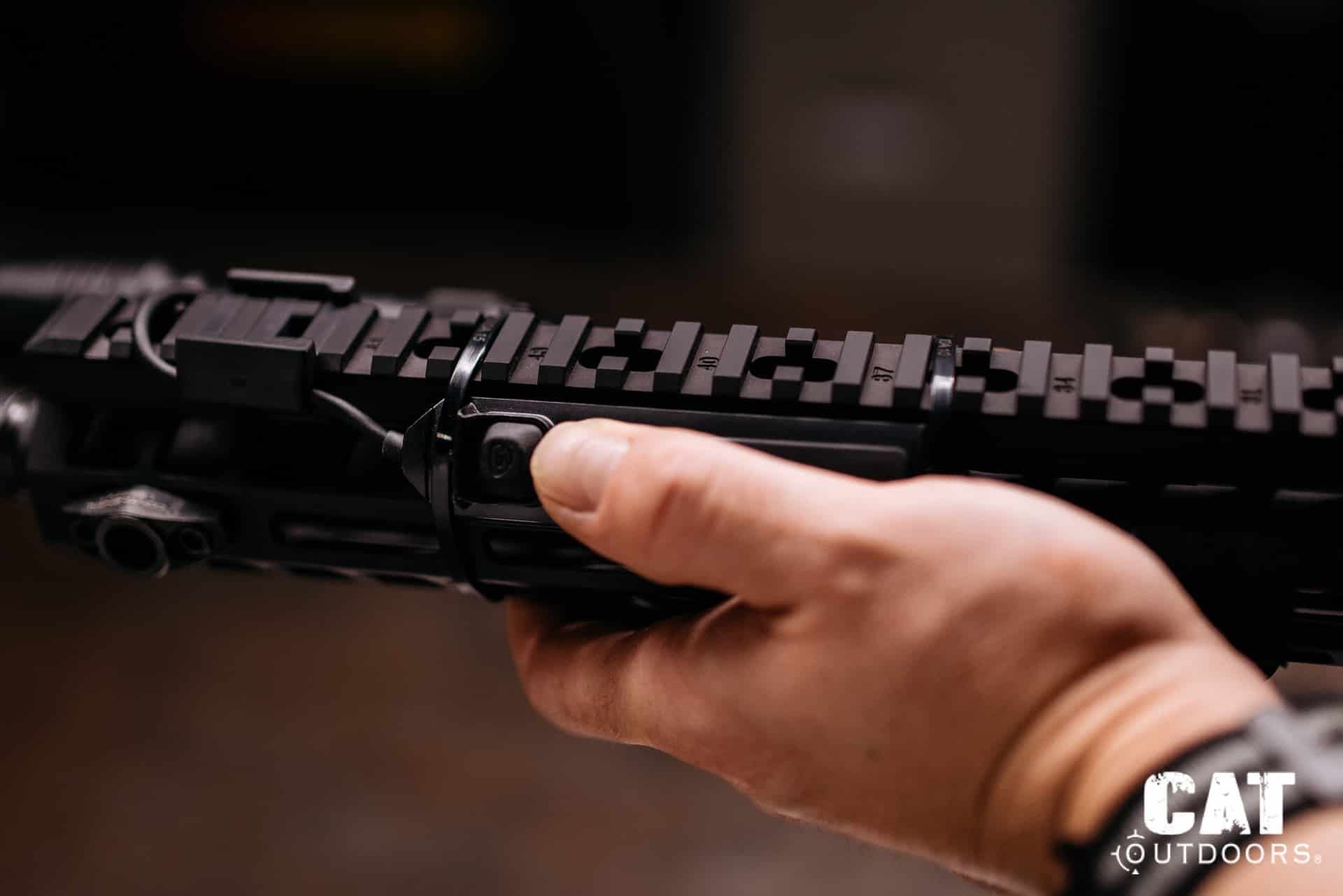

The 10 o’clock zip tie position gets the important part right. When I want the light on, it’s a simple, but intentional, movement of my thumb, and then it goes right back to my original grip position. Nothing comes on by accident, and my grip never has to change to make it happen.

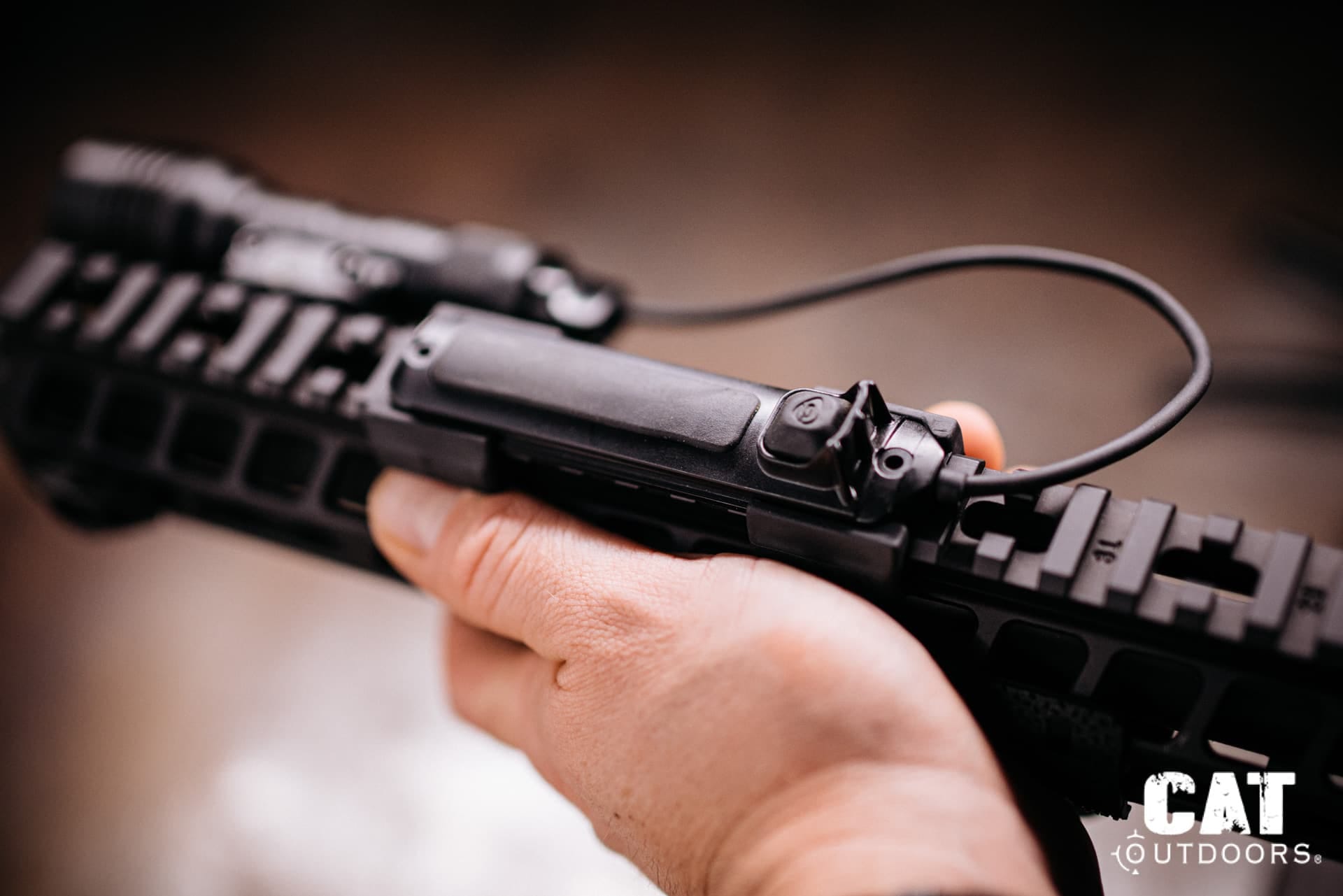

One last practical note: a remote switch means a cable, and a cable means cable management. Route it clean and zip tie it down, or your handguard picks up a snag point you will find at the worst possible moment.
Who It’s For (and Who It’s Not For)
No light is for everyone, and this one doesn’t pretend otherwise.
Buy it if:
- You’re a civilian rifle owner prioritizing home defense or property use.
- You want a complete, ready-to-run kit out of the box, battery included.
- You’re budget-conscious but still want reliable performance from a trusted name.
- You’re running a compact rifle build where the ProTac’s small size earns its rail space.
Look elsewhere if:
- You’re chasing maximum output or long-range PID; 350 lumens is not that tool.
- You want a truly elite mounting ecosystem instead of one that just gets the job done.
- You want a 45-degree tapeswitch position without a zip tie workaround.
Streamlight ProTac Rail Mount 1
Everything you need in one box: light, both mounts, tapeswitch, and the battery.
Our Verdict
The Streamlight ProTac Rail Mount 1 definitely earns its place as a trusted weapon mounted light, and it earns the 8/10 I gave it. It delivers the performance most normal civilians need, a complete kit with no required additional purchases, and a price that is on-point for a budget-to-mid level kit.
The value math backs that up. MSRP is $140, street prices regularly land lower, and we paid $89.99. At this price point, most lights either cut corners on durability or require you to piece together a full setup with separate mounts and switches, and the complete kits that do exist at the budget end are usually bulkier, less refined, or questionable in long-term reliability.
Then there’s the other direction. Read our SureFire Mini Scout Light Pro review and you’ll see what elite level performance looks like, and what happens to your wallet by the time you add similar accessories. This is the light for someone who deep down inside wants the Mini Scout, but doesn’t want to put in a month of overtime to pay for a flashlight.
The ProTac sits right in the middle. It works reliably and doesn’t force you into a $300+ build just to get up and running. Bolt it onto a compact build or any of the best AR-15s set up for home defense and it covers the job.
The tradeoffs show up in mounting flexibility and switch ergonomics, but the core performance holds strong: beam quality, durability, and usability. If you understand what it is and what it isn’t, it’s an easy recommendation.
It’s not built to be perfect. It’s built to work. And it does.
That is the whole Streamlight ProTac Rail Mount 1 review: an $89.99 receipt, a tape measure that caught a quarter inch, and a light that earned its spot on the rail.
Final Score: 8/10
Safety & Compliance
- Always follow manufacturer instructions and torque specs during installation.
- Comply with all local, state, and federal laws regarding firearms and accessories.
- Do not attempt illegal modifications. When in doubt, use a licensed gunsmith.
Frequently Asked Questions
Is 350 lumens enough for home defense?
Yes, at indoor distances it is. Once you’re inside a structure, beam shape matters more than raw lumen count, and the ProTac Rail Mount 1’s TIR lens focuses 12,000 candela into a bright center spot with enough side spill for peripheral awareness. The 1,000-lumen lights out there prove their worth outdoors and at distance, not across a hallway.
Does the ProTac Rail Mount 1 come with a pressure switch?
Yes. The kit includes both a standard tailcap and a remote tapeswitch, plus three ways to mount the switch: plastic picatinny rail clips, a pre-cut two-sided adhesive strip, and zip ties. After weighing all three, I ended up zip tying mine at the 10 o’clock position.
What battery does it use, and how long does it run?
It runs on a single battery, either one CR123A or one AA, and Streamlight includes a battery in the box. Streamlight rates it at 1.75 hours on high and 14.5 hours on low. The light also carries a lifetime warranty, with two-year coverage on the switches and electronics.
What’s the difference between the ProTac Rail Mount 1 and the Rail Mount HL-X?
They’re different lights, not versions of the same one. The ProTac Rail Mount 1 (model 88058) is a compact 350-lumen, 12,000-candela light that runs on a single battery. The Rail Mount HL-X (model 88066) is a larger 1,000-lumen, 50,000-candela light for shooters who want maximum output, and there’s also a Rail Mount 2 (model 88059) at 625 lumens between them. Search results blend the whole family together, so match the model number before you buy.
Will it fit M-LOK handguards?
Yes. An M-LOK bolt-on mount comes in the box alongside the picatinny thumbscrew clamp, and it pulls the light in tighter to the handguard. Installation takes tools and T-nuts, about 2 or 3 minutes at a bench, so treat it as a set-and-forget choice rather than a field swap.
