Vortex Crossfire HD 1400 Rangefinder Review: Best Under $200?
If you need a rangefinder with crystal clear vision, the Vortex Crossfire HD 1400 Rangefinder might be the best value on the market at $129.98, though the pouch might not be for everyone.
The Vortex Crossfire HD 1400 offers crystal clear vision, angle-compensated ranging, and a nice pouch that reduces noise. But that pouch gives up some security for quiet, and the display can be hard to see in the snow unless you turn the brightness up all the way.
Reasons to Buy
- Quiet hook-and-D-ring case instead of Velcro
- Compact at 4 x 2.9 x 1.3 inches
- Tool-free battery cap that goes back on easily
- Name-brand Panasonic CR2 included
- Clear HD glass from 50 to 400 yards
- Readings come back quickly
- Scan mode ranges as you sweep
Reasons to Skip
- Hook closure trades some security for quiet
- Hand shake makes small targets at 400 yards hard to hold the reticle on
Looking for a laser rangefinder under $200?
You already know the dilemma. You can buy a cheap, generic rangefinder off Amazon that drops its laser tracking past 200 yards, or drop the price of a decent handgun on a high-end optic meant for Mr. Extreme Mountain Hunter.
The Vortex Crossfire HD 1400 rangefinder enters stage right promising HD clarity and angle-compensated ranging for a street price of $199. It sits right in the Goldilocks zone.
So, when Cabela’s sent me a sample to test out, (they’re offering a spectacular sale of $129.98 on it this holiday season), I was amped to put together a comprehensive Vortex Crossfire HD 1400 review.
Does it actually deliver on that advertised 1,400-yard range, or does the performance drop off long before you hit the steel? Can a sub-$200 unit hold its own against the heavy hitters when lighting conditions get ugly?
After a few days of testing this pocket-sized optic, I’ve come to love it, which led me to add it to our Holiday Gift Guide. Let’s see if it deserves a permanent spot in your range bag.
Vortex Crossfire HD 1400 Specs
- Model: LRF-CF1400
- Magnification and Objective: 5×21
- Max Range: 1,400 yd reflective, 950 yd tree, 750 yd deer
- Minimum Range: 5 yd
- Accuracy: ±1 yd to 100 yd, ±2 yd from 100 to 1,000 yd, ±3 yd past 1,000 yd
- Field of View: 7 degrees (367 ft at 1,000 yd)
- Eye Relief: 16 mm
- Display: red TOLED (transparent OLED), five brightness levels (factory default 3)
- Range Modes: HCD (angle-compensated, factory default) and LOS
- Target Modes: Normal (default), 1st and Last
- Scan: hold the Measure button
- Units: yards or meters
- Battery: one CR2
- Size: 4.0 x 2.9 x 1.3 in
- Weight: 4.8 oz
- Weatherproofing: waterproof and shockproof
- Warranty: Vortex VIP, unlimited, unconditional, lifetime
- Street Price: $199.99
Source: Vortex Crossfire HD 1400 product manual.
Vortex Crossfire HD 1400 vs. Other Rangefinders
| Spec | Vortex Crossfire HD 1400 | Vortex Triumph HD 850 | Vortex Diamondback HD 2000 | Cabela’s 1500R |
|---|---|---|---|---|
| Price at Cabela’s | $129.98 (sale, reg. $199.99) | $99.99 | $299.99 | $99.98 (sale, reg. $129.99) |
| Magnification | 5×21 | 5×21 | 7×24 | 6×21 |
| Max range (reflective) | 1,400 yd | 850 yd | 2,000 yd | 1,500 yd |
| Max range (deer) | 750 yd | 350 yd | 1,400 yd | 600 yd |
| Angle compensation | Yes (HCD) | Yes (HCD) | Yes (HCD) | Yes (True Horizontal Distance) |
| Target modes | Normal, 1st, Last | Normal, First, Last | Normal, Last | Not listed |
| Display | Red TOLED, 5 brightness levels | Black LCD | Red OLED | LCD |
| Weight | 4.8 oz | 4.6 oz | 7.6 oz | Not listed |
| Warranty | Vortex VIP, lifetime | Vortex VIP, lifetime | Vortex VIP, lifetime | Not listed |
| Tested by us | Yes | No | No | Yes |
| Best for | Most hunters inside 750 yards | Tightest budget, bow range | Long shots out West | Lowest price |
| Buy | Check price at Cabela’s | Check price at Cabela’s | Check price at Cabela’s | Check price at Cabela’s |
Why You Can Trust This Review
Full disclosure: Cabela’s sent this rangefinder to me to test as a part of their upcoming holiday promotions. But if you know anything about us, free gear doesn’t mean we’ll give it a good grade. If a product sucks, we’ll happily say so. We’ll link to Cabela’s, but we add other retailers too so you can see the price for yourself.
Cabela’s also tossed in their 1500R rangefinder to compete, so I’ll be comparing to that throughout the review.
How I Tested the Vortex Crossfire Rangefinder
Testing optics usually means packing up a truck and heading to the middle of nowhere. Luckily, the back door of my warehouse gives me a target-rich environment – several buildings at 200-600 yards, a white trailer, a thick treeline, a few unsuspecting forklifts in the distance, and more. I spent a few days testing out the different features.
I wasn’t able to stretch this out to the full 1400 yards, max I could get was 600, but it gave me plenty of insight into the product.

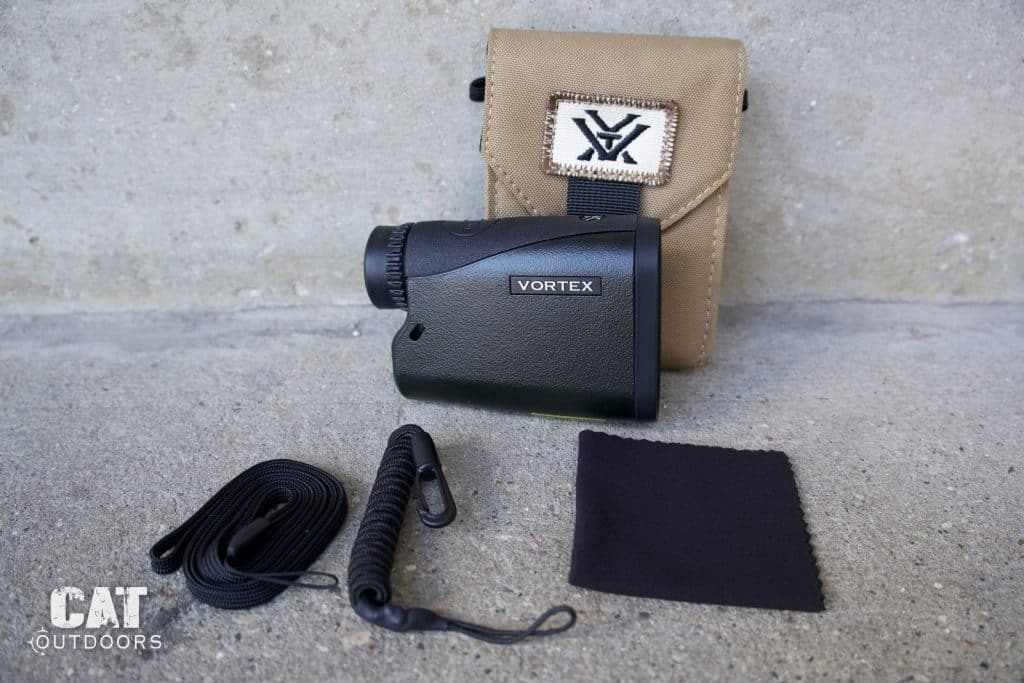

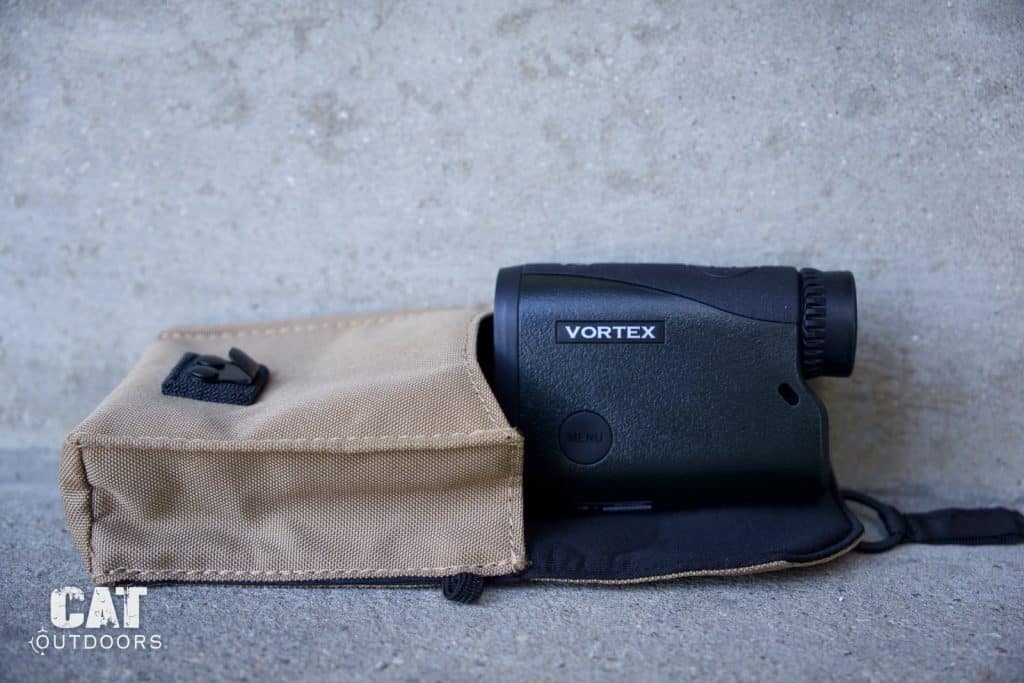

Size and the Case

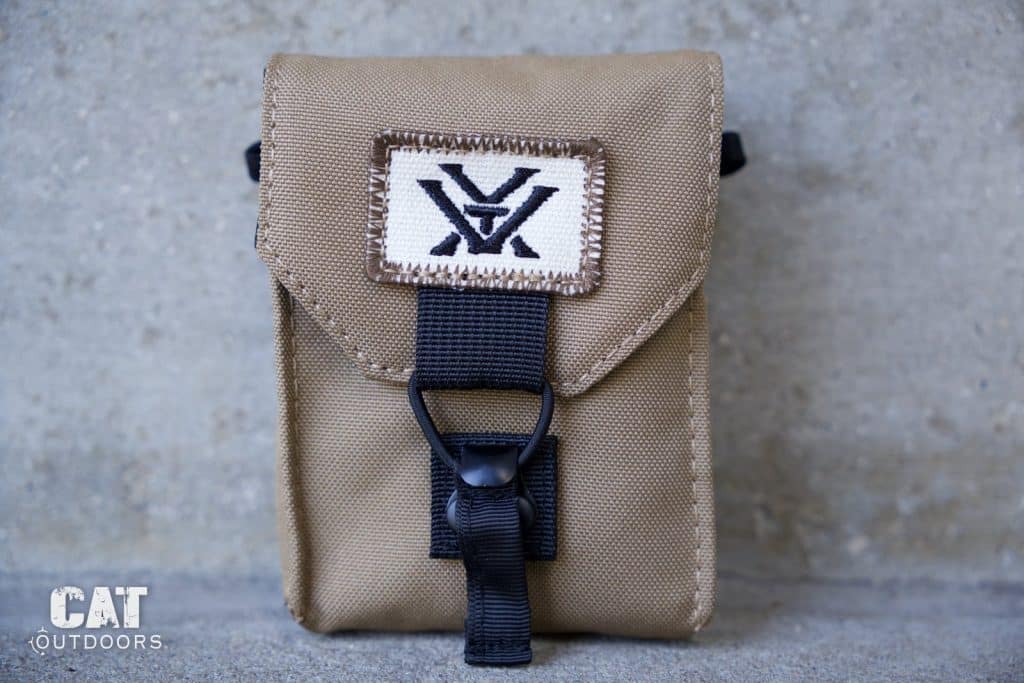

The first thing I looked at was the case.

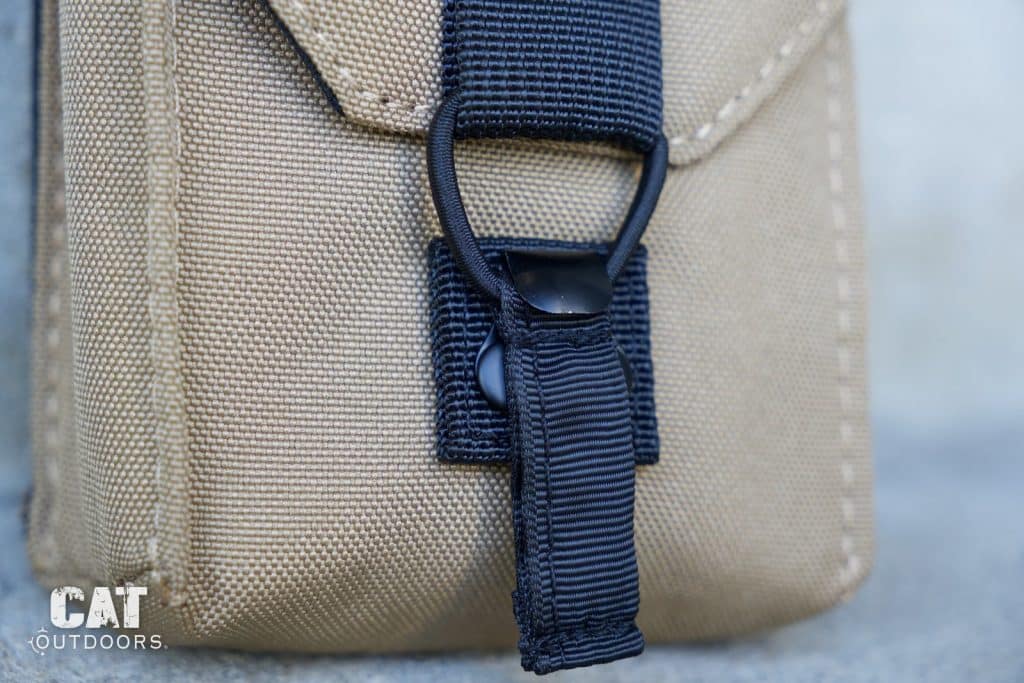

Most pouches rely on loud, ripping Velcro. Nothing says “Hey look, a deer!” quite like tearing open a Velcro flap in the dead silence of dawn. Vortex smartly uses a little hook and D ring closure. It’s completely silent – something I appreciated right off the bat.
The downside here is that you’re swapping some security for stealth. There’s no mechanical snap or zipper to keep it locked down, so if you’re scrambling over deadfalls, there’s a non-zero chance your rangefinder decides to go skydiving.

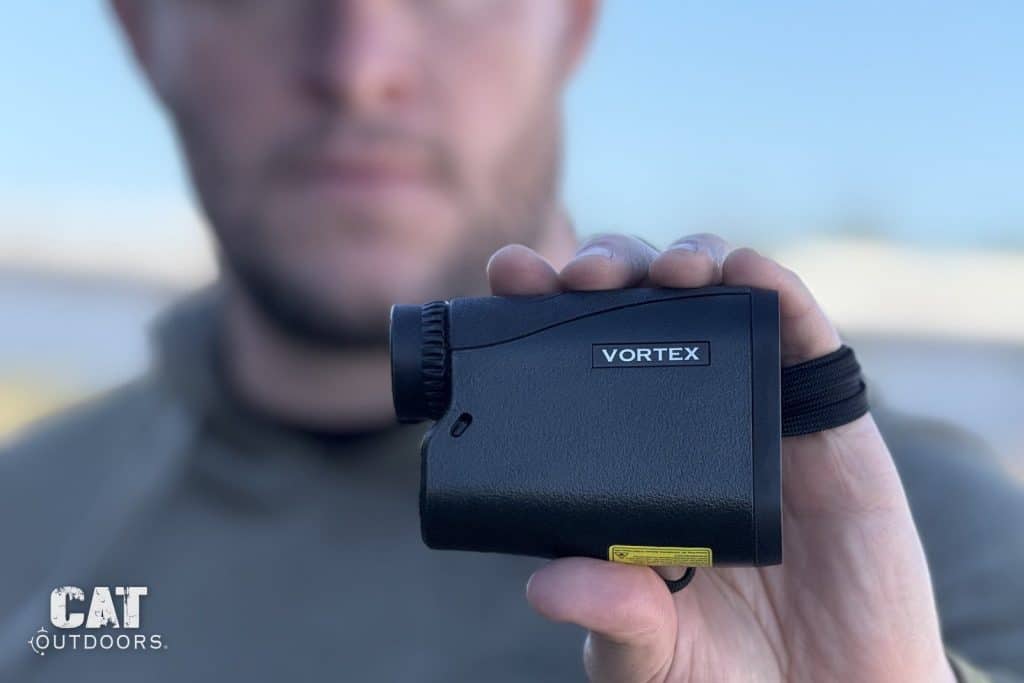

As for size, it’s tiny. Measuring a petite 4” x 1.3” x 2.9”, it makes the bulky Cabela’s 1500R look like an absolute brick.

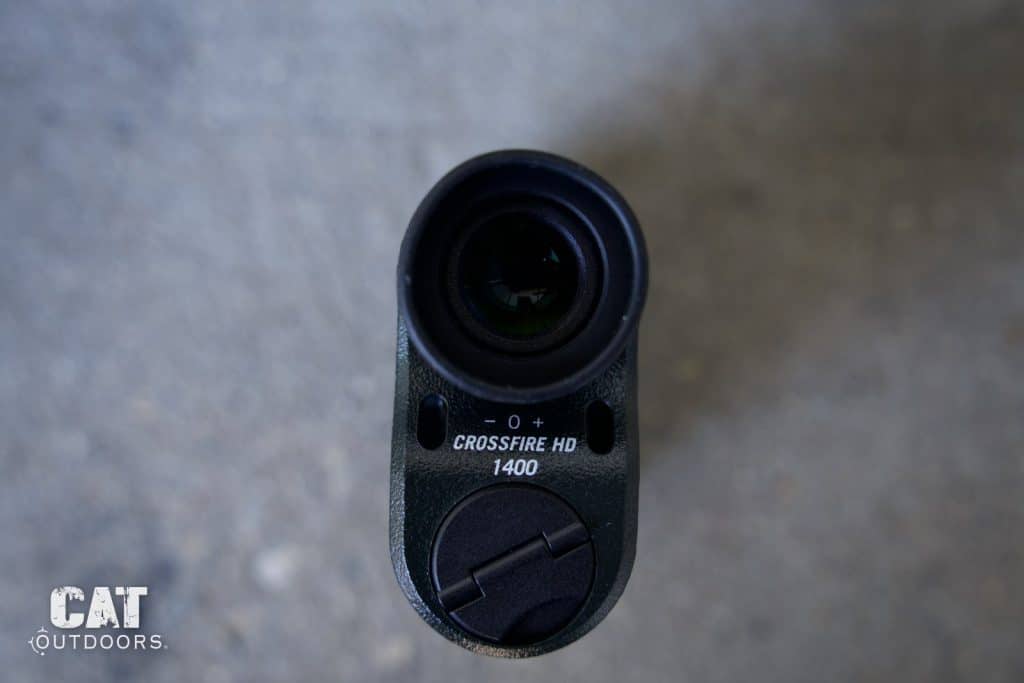

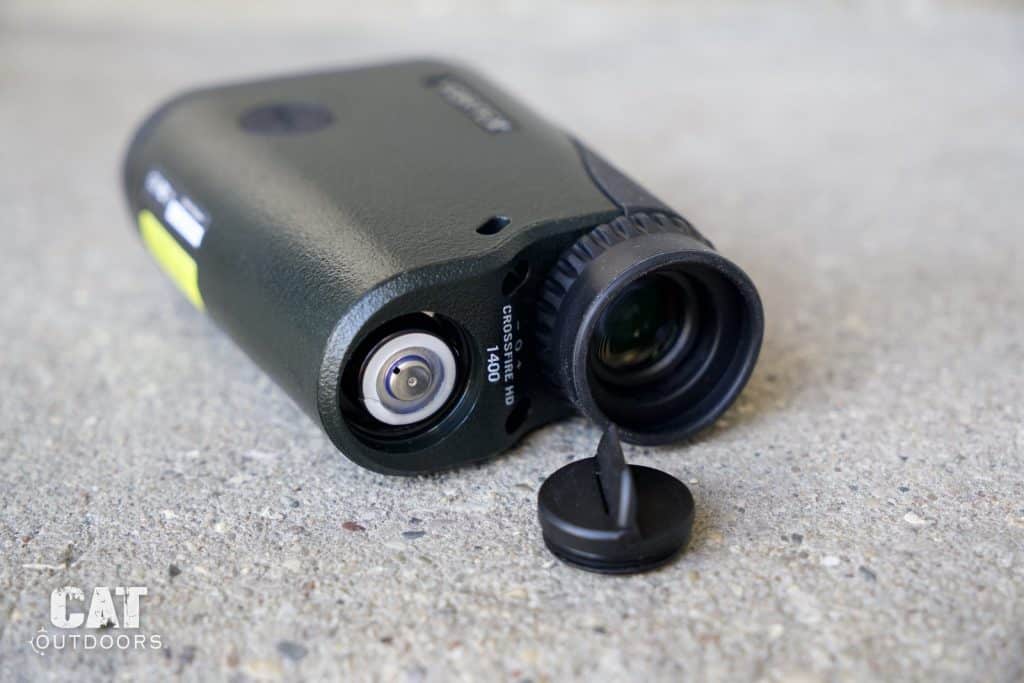

Battery and the Tool-Free Cap
Next up was the battery compartment. Right away, I like the toolless cap. It has a clever little hinger flap, offering something to grab onto and unscrew with your fingers. It reminds me of the toolless fuel caps on my Husqvarna 572 chainsaw.
It also comes with a Panasonic CR2 battery. A name brand battery gives me a little more assurance than the no-name shrink-wrapped ones with Chinese symbols on them.
The thread accuracy on the cap is incredibly smooth, which seems like a minor detail, but I’ve fought other rangefinders where cross-threading a battery cap took a literal minute. The Crossfire spins shut in under ten seconds.

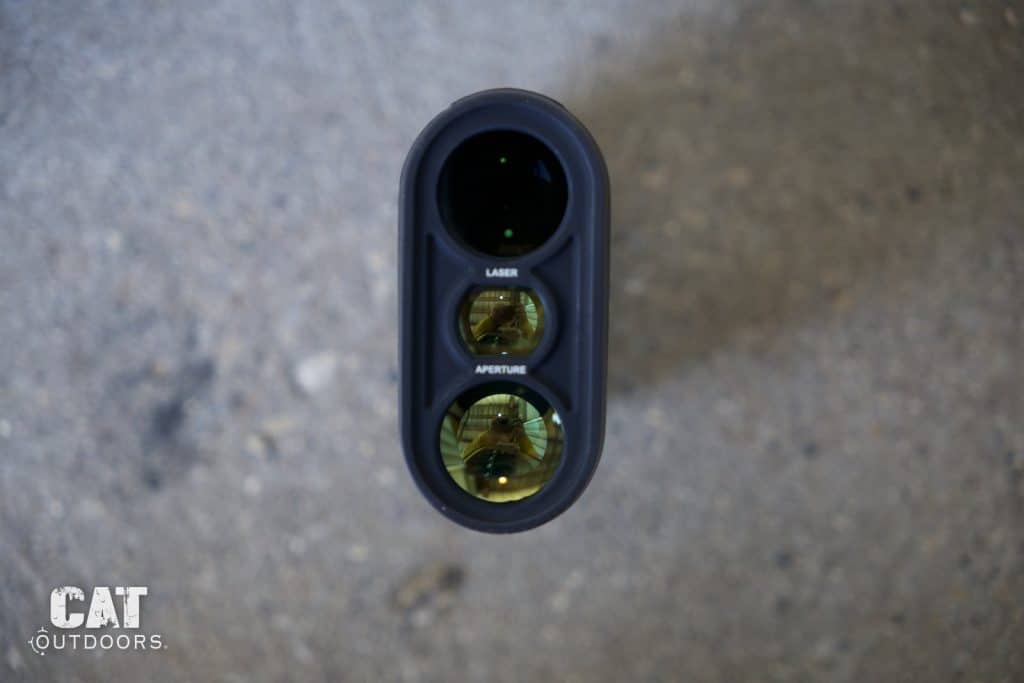

HD Glass: Clear From 50 to 400 Yards
Looking through the glass for the first time is a legitimate surprise for a sub-$200 optic. Whether I was focusing on an object at 50 yards or 400 yards, everything just looks crisp and clear. The glass is advertised as HD and it doesn’t disappoint.

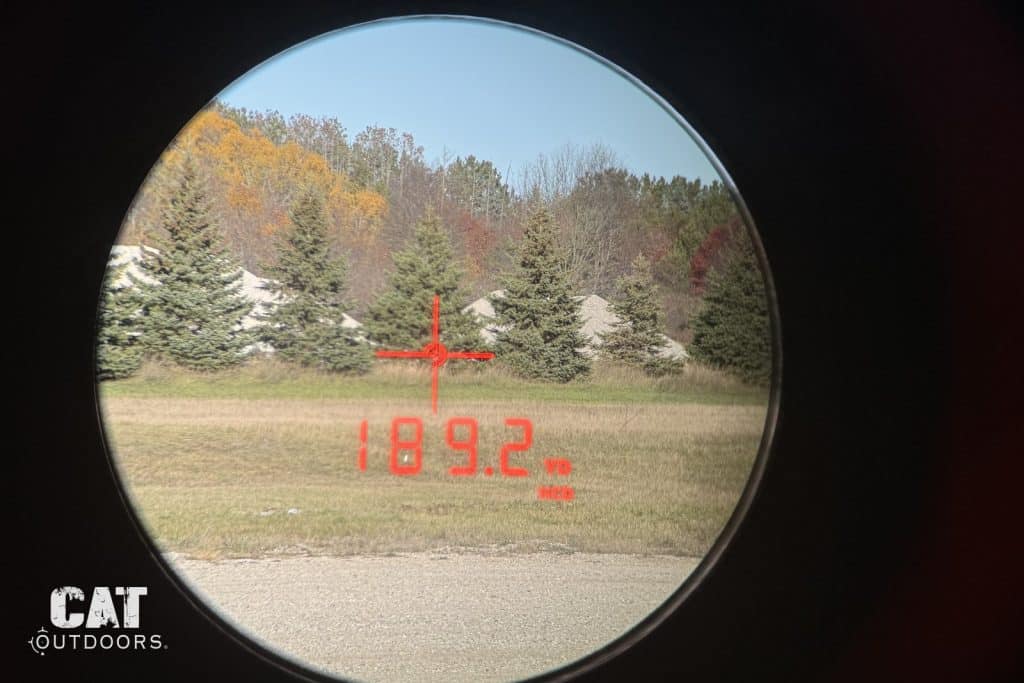

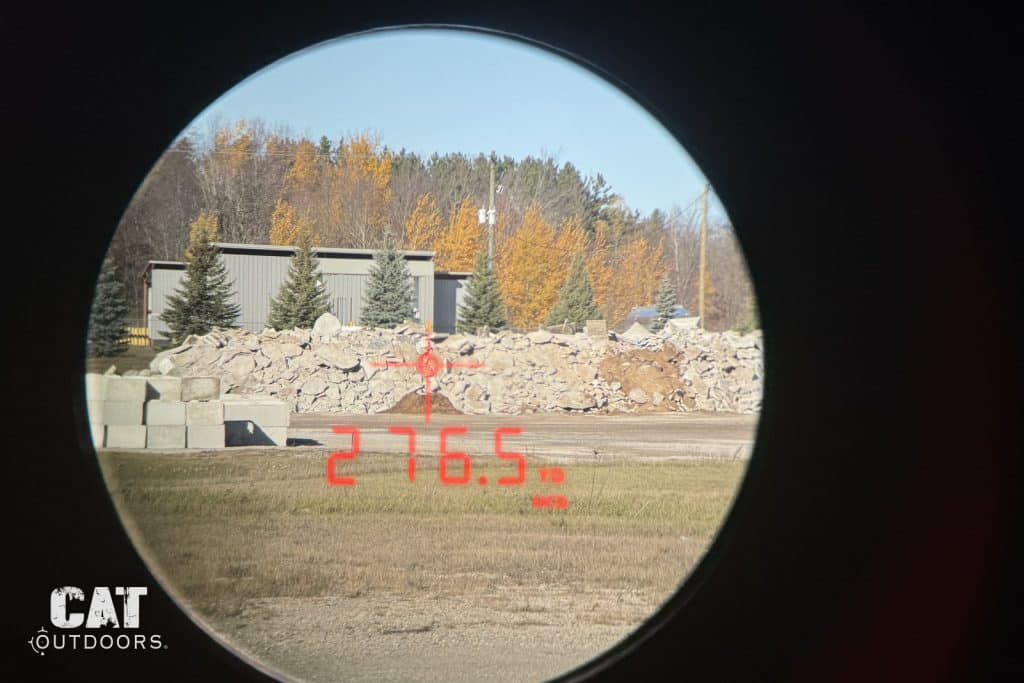

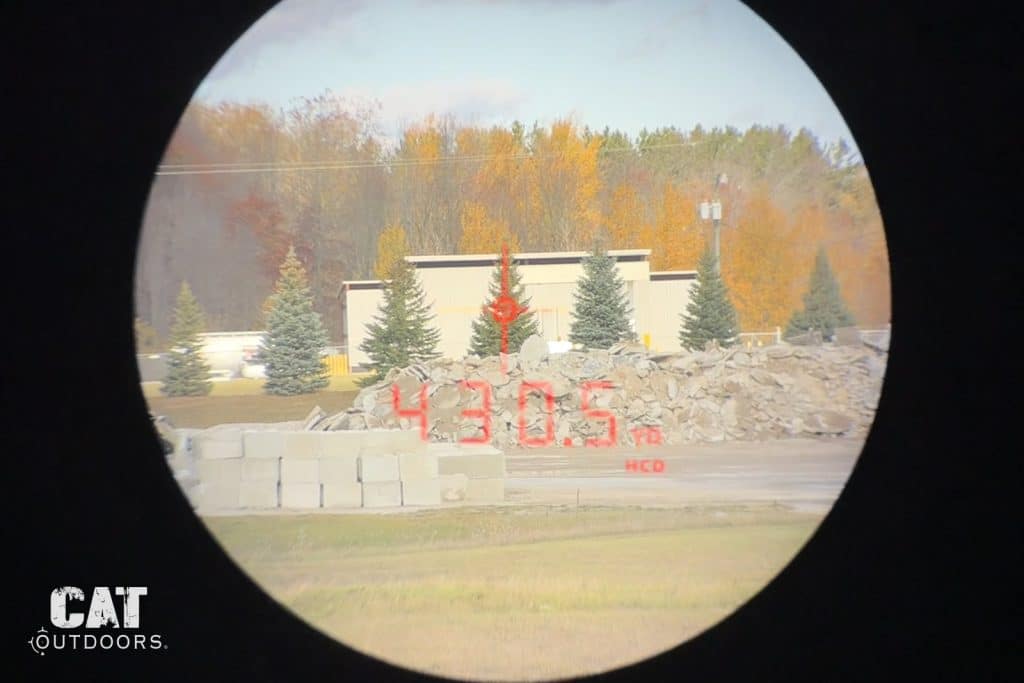

The Display
The reticle features an illuminated, red, transparent OLED display. Under 1,000 yards you’ll get readouts in 0.1 increments.
Out of the box, the factory default brightness is set to 3. I didn’t realize that at first. I pointed the laser at a bright white semi-trailer, and the red text became very hard to see against the white background. If you plan on hunting in the snow or ranging light-colored targets in full sun, level 3 is going to make you lose your mind.
The fix is to crank the brightness up to max level 5. Once maximized, the red reticle burns right through the bright backgrounds with zero issues.
The other thing is you can change from yards to meters as the form of measurement in the menu if you want to.
Ranging Speed and Accuracy
Ranging speed is almost instantaneous. You press the measure button and the number comes back immediately, making the Cabela’s 1500R seem sluggish.
But stretching out the distance revealed the limiting factor with this: my own hands.
Trying to hold a steady focal point on a deer-sized target at 400+ yards is a serious exercise. My hands have just enough natural shake and trembling to make holding the reticle dead-on a challenge. The laser is fast, but if you have a little too much coffee before hitting the stand, tracking small targets past 400 yards will require a very steady rest.
Targeting Modes
The Crossfire lets you cycle through three distinct tracking modes via the menu button:
- Normal Mode: Locks onto the strongest return signal.
- 1st Mode: Locks onto the closest object in your path (great for tracking an animal through a clearing).
- Last Mode: Ignores the foreground and locks onto the furthest target (perfect for burning through brush, branches, or timber).
I did not have a deer standing by in the treeline for me to test this, so I focused on the unsuspecting forklifts and guys working around them. It showed distinct distance readouts when I switched between 1st and Last mode.

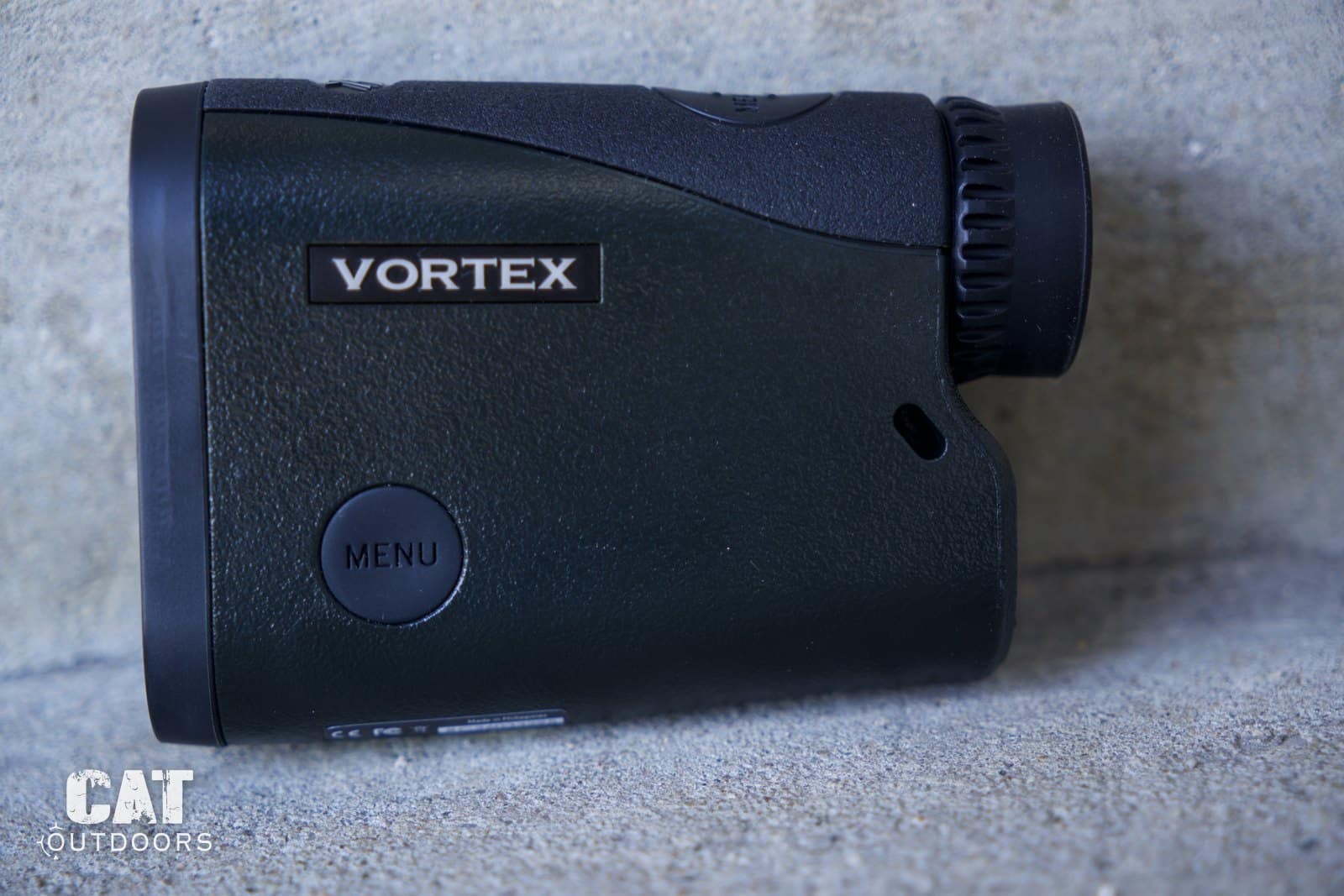

Controls: Two Buttons to Rule Them All
The interface is simple to use.
- Measure button: Click once to wake it up and once again to zap a distance. Hold it down and it enters Scan Mode, letting you sweep across the valley. As you scan looking through the optic it will give ranges at whatever the rangefinder is pointed at. Just note there’s a slight half-second lag as the computer updates the distances during a sweep.
- Menu button: Short presses cycle your targeting modes (Normal, 1st, Last). Hold it down for three seconds and you enter the matrix to adjust your brightness, swap between yards and meters, or switch your angle compensation.
HCD and LOS: Angle Compensation
Most casual shooters will set this thing up and never touch, but you absolutely should take advantage of it. Holding down the menu button lets you toggle between two range modes:
- LOS (Line of Sight): Gives you the raw, straight-line distance to your target.
- HCD (Horizontal Component Distance): It automatically calculates the steepness of your angle and gives you the flat distance. If you are hanging out of a tree stand or shooting down a steep ridge, the actual distance your bullet or arrow needs to travel is shorter than the straight line of sight.
HCD comes turned on right from the factory. Unless you have a specific ballistic calculator app running on your phone, just leave it on HCD and let the optic handle the math.
Warranty
Vortex calls this their VIP Warranty. It is completely unlimited, unconditional, and lasts for a lifetime. You could drop this out of your truck, run it over with a tractor, and they will still fix or replace it.
For an entry-level optic, that kind of peace of mind is unbeatable.
What Reddit Says About the Vortex Crossfire HD 1400
Let’s see if other hunters’ experience matches mine. Here is what people on Reddit have said about the Crossfire HD 1400. A few themes kept coming up.
- The Price is Right. It comes up again and again as the budget pick for bowhunters. One user in r/bowhunting put it this way: “You can’t beat it for the price and warranty.”
- Treestand hunters like the angle compensation. HCD is the reason a lot of archery hunters picked it over cheaper rangefinders without it.
- It’s a step up from no-name Amazon units. One hunter said it was much better than the $70 Simmons they used before.
- The red display splits people. Some say it’s easy to read on sunny days. Others say bright sun on the target makes the red numbers harder to see. That matches what I saw on the white semi trailer. Turn the brightness up.
- Most hunters don’t need the Diamondback. In a Diamondback vs. Crossfire thread, hunters in the East and Midwest said the Crossfire covers the distances they actually shoot. The r/longrange crowd said much the same.
- Holding it steady is a known issue. People are already asking about tripod mounts for the Crossfire 1400, which is the same hand-shake problem I experienced at 400+ yards.
- Deal watchers say wait for a sale. It shows up on r/gundeals often: $149 with a code, $110 refurbished, and this week’s Cabela’s deal at $129.98.
Bottom line: Redditors mostly agree with my experience. If you want Vortex glass and the VIP warranty, without paying Diamondback money, this is a great rangefinder.
What I’d Change
It’s hard to say, because for a handheld model, it’s pretty awesome. My one thing was that stability and trembling hands can make it difficult to focus on targets at a distance. But the solution would be a step up to something with a stand or tripod.
Who It’s For (and Who It’s Not For)
Who It’s For: Budget-conscious hunters, golfers, and weekend range warriors who want crisp HD glass, instant readouts, a silent field case, and a lifetime warranty without skipping a car payment.
Who It’s Not For: Extreme long-range PRS competitors targeting tiny steel at 1,000+ yards who need a heavy, tripod-mounted ballistic calculator. Also, anyone who routinely hunts in blinding blizzards and refuses to toggle their brightness settings.
Vortex Crossfire HD 1400 Laser Rangefinder
It’s advertised as HD and it didn’t disappoint.
Final Verdict
The Vortex Crossfire HD 1400 is easily the best value rangefinder on the market right now. It brings HD glass clarity, lightning-fast laser returns, and advanced angle-compensation down to a price tier that doesn’t hurt your wallet.
At its standard $199 street price, it’s a solid buy. But if you can snag it during this Cabela’s holiday sale for $129.98, it is an absolute steal. Buy it, throw it in your range bag, and don’t look back.
Where it lost points:
- Hand shakes make it hard to stay on target at 400 yards and beyond.
- The hook closure trades some security for quiet.
Final Score: 8.9/10
Where do you use a rangefinder the most? Got one you think is better? Let us know in the comments below. If you like Vortex gear, be sure to check out our review on the Vortex Strike Eagle.
FAQ
What battery does the Vortex Crossfire HD 1400 use?
One CR2. Mine came with a Panasonic CR2 in the box, and the battery cap screws off by hand, no tool needed.
Does the Crossfire HD 1400 read in yards or meters?
Both. Hold the Menu button about three seconds to open the menu, and the units setting switches between yards and meters. The menu shuts off on its own after 20 seconds without a button press.
What do HCD and LOS mean on the Crossfire HD 1400?
They are the two range modes. HCD is the angle-compensated mode and the factory default, so it corrects the distance for an uphill or downhill angle. LOS (line of sight) gives the straight-line distance with no angle correction. You pick one in the menu.
How far can the Vortex Crossfire HD 1400 range?
Vortex rates it to 1,400 yards on reflective targets, 950 yards on trees and 750 yards on deer, with a 5-yard minimum. Mine read as low as 4.5 yards. Accuracy is ±1 yard to 100 yards, ±2 yards from 100 to 1,000 and ±3 yards past 1,000.
What do the 1st and Last target modes do?
Normal, the default, shows the strongest return. 1st shows the closest object in the beam, and Last shows the farthest. Press the Menu button to switch. The display shows 1st or Last when either is on and nothing in Normal.
