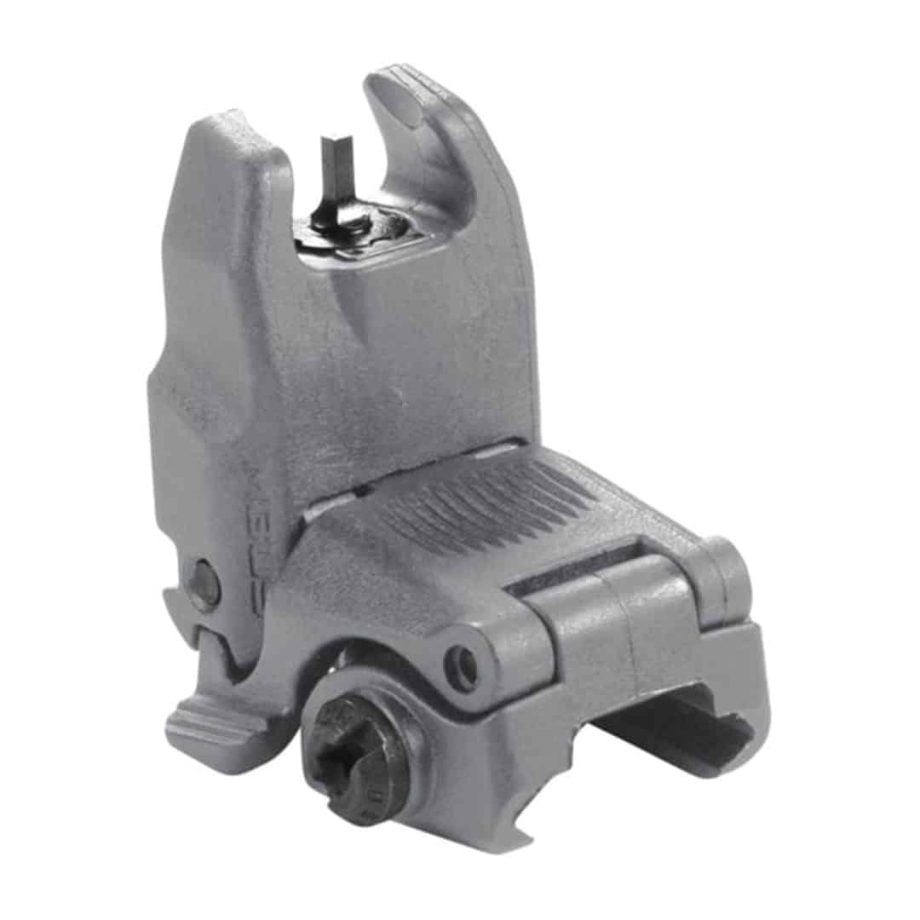

Magpul MBUS Flip-Up Backup Sights Picatinny Gen 2

MAGPUL MBUS GEN2 Sight – Front. Goes with Magpul MBUS Rear Flip-Up Sight.

MAG247

Add to wishlist
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MAG247 Categories: , ,

Description

Make your AR even more adaptable with the Magpul MBUS Flip-Up Backup Sights Picatinny Gen 2. The MBUS (Magpul Back-Up Sight) is a low-cost color injection molded folding back-up sight. The MBUS Front Sight is adjustable for elevation and fits most 1913 Picatinny-railed hand guards, but is specifically tailored to the AR15/M16 platform.

An elevation adjustment tool is included, but most aftermarket A2 front sight adjustment tools may be used as well.

Made in the USA.

Magpul MBUS Front Sight Hero

Features of Magpul MBUS Flip-Up Backup Sights Picatinny Gen 2:

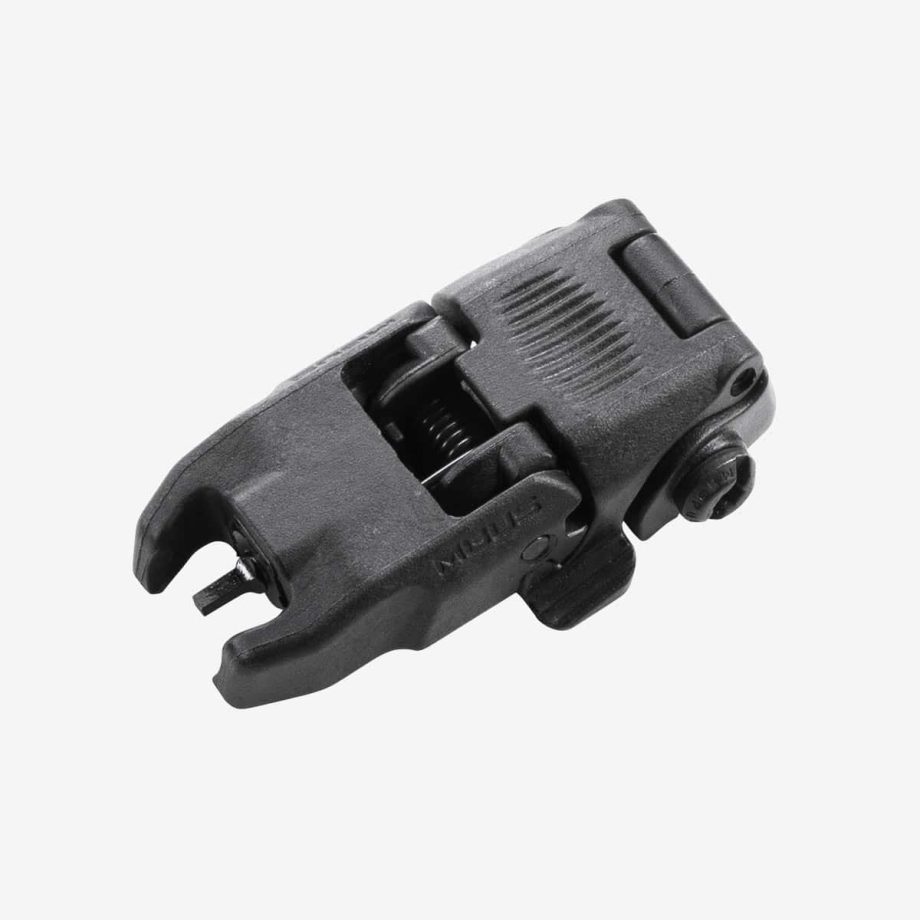

SPRING-LOADED FLIP UP SIGHT

Easily activated from either side or by pressing the top.

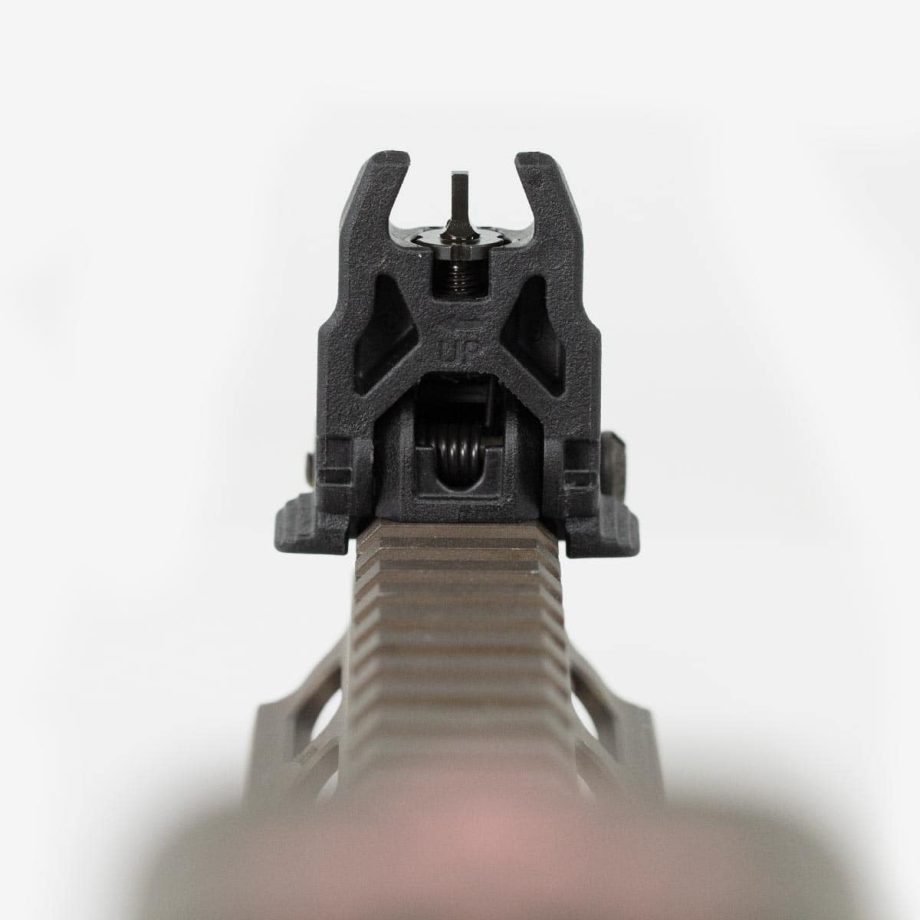

Protective wings shield the spring-locking A2 front sight post.

IMPACT-RESISTANT POLYMER CONSTRUCTION

Polymer construction provides light weight and resists operational abuse.

DETENT AND SPRING PRESSURE KEEPS SIGHT ERECT

Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.

CLAMPS TO MOST MIL-STD-1913 PICATINNY RAILS

Compatible with most MIL-STD-1913 Picatinny / STANAG 4694-railed hand guards* and provides the same height-over-bore as standard A2 irons.

Want to see the Magpul MBUS Flip-Up Backup Sights Picatinny Gen 2 in action?

About Magpul:
Magpul makes high quality injection molded parts and accessories, primarily for the AR15 rifle platform, right here in the USA. Polymer backup sights are popular for several reasons, including low weight, quiet operation, and durability. High quality polymer can take a certain amount of abuse without breaking, and still return to its original form, unlike metal, which may permanently deform, or even break.

How to Install Magpul MBUS Flip-Up Backup Sights Picatinny Gen 2:

https://www.youtube.com/watch?v=X1A9OnKh14s

ADDITIONAL INSTRUCTIONS:

TECHNICAL SPECIFICATIONS

More Information
PositionFront
Height above rail, stowed~0.51 in.
Length, deployed1.5 in.
Length, stowed2.6 in.
Weight, w/ hardware1.2 oz.
Other SpecsELEVATION ADJUSTMENT

~1.6 MOA (1.886″/100m) per click with a 14.5″ sight radius

~1.2 MOA (1.367″/100m) per click with a 20″ sight radius

*NOTE: Cannot be mounted to a railed gas block due to excess heat issues. Front MBUS must be mounted to a railed fore end on the same plane as the receiver rail. Because of this the sight is also not compatible with MOE Hand Guards.

E.A.R.
Export Administration Regulations Controlled Product

EXPORT NOTICE: This is an item controlled for export by the Export Administration Regulations (EAR) under the Commerce Control List (CCL). These controls take the form of export regulations and license requirements. As part of the express consideration provided for receipt of CAT Outdoor’s goods, technical data and/or services, you, our customer, acknowledge that the export, re-export or other transfer, directly or indirectly, of the goods, technical data and/or services provided by CAT Outdoors in violation of U.S. law is prohibited. Customers acquiring controlled goods, technical data and/or services from CAT Outdoors shall be responsible for obtaining any necessary U.S. or other government authorization required to ensure compliance with applicable export laws. (See Magpul Compliance Notices page for more information).

PLEASE NOTE: Certain U.S. jurisdictions restrict firearm magazines sales. CAT Outdoors cannot process sales/shipments prohibited by law. A list of states and municipalities restricting firearm magazine sales is available here.

WARNING: Observe safe firearm handling practices at all times. Failure to do so may result in serious bodily injury or death. Neither CAT Outdoors nor Magpul Industries shall not be responsible for injury, death, or property damage resulting from faulty installation, misuse, illegal use, or modification of this product.



Additional information

Colors

Black, Grey, Olive Drab
