AR-10 Calibers: History & Differences Guide

From the field to the range, the AR-10 platform stands as a robust, versatile rifle that packs a heavier punch than its AR-15 counterpart.

Developed in the late 1950s by Eugene Stoner, the AR-10 was initially chambered in .308 Winchester—a caliber known for its long-range power and precision. While the U.S. military ultimately chose the M14 over Stoner’s design, the AR-10’s legacy continued, leading to innovations that would later influence the iconic M16 and civilian AR-15.

Today, the AR-10 is highly regarded for its ability to handle larger calibers, making it ideal for applications where greater stopping power and range are essential.

In this guide, we break down everything you need to know about the AR-10 calibers, including which are the most popular and their unique benefits.

With insights into each caliber’s strengths and uses, you’ll be ready to select the right setup for your needs, whether it’s long-range shooting, big game hunting, or competitive accuracy.

If you’re looking to understand how an AR-10 outperforms the AR-15 at extended distances or want to customize your rifle with specific chamberings, this guide will walk you through the history, performance factors, and caliber choices that make the AR-10 a powerhouse in the world of semi-automatic rifles.

History of the AR-10 Platform

Eugene Stoner developed the AR-10 in the late 1950s while working at ArmaLite, a relatively young company at that time. The rifle, originally chambered in .308 Winchester, was designed with the .308 Win. cartridge in mind, which enhanced its performance at long distances compared to the AR-15, a smaller and lighter platform.

When the Pentagon sought a replacement for the .30-06 Springfield-chambered M1 Garand in response to the emerging global threats, several companies submitted designs, including the original AR-10 and the M14, both chambered in .308 Win.

After some modifications, NATO adopted this cartridge in 1957 under the designation 7.62 NATO.

In that same year, the U.S. military selected the M14 over the AR-10 as its standard-issue rifle. This decision did not deter Stoner, who continued to refine his gas-impingement design and later developed a smaller version chambered in 5.56 NATO, leading to the M16 rifle.

The M16 was heavily utilized in the Vietnam War, while its civilian counterpart, the AR-15, emerged as a popular option in the American market.

However, due to its smaller specifications, the AR-15 is limited in long-distance performance compared to the AR-10, which can handle a greater range of cartridges for various applications.

How Calibers are Defined

What exactly does “caliber” mean? Caliber refers to the diameter of a firearm’s barrel, determining the size of the projectile it can fire. This measurement is typically noted in inches or millimeters—like 9mm for pistols or .223 for rifles.

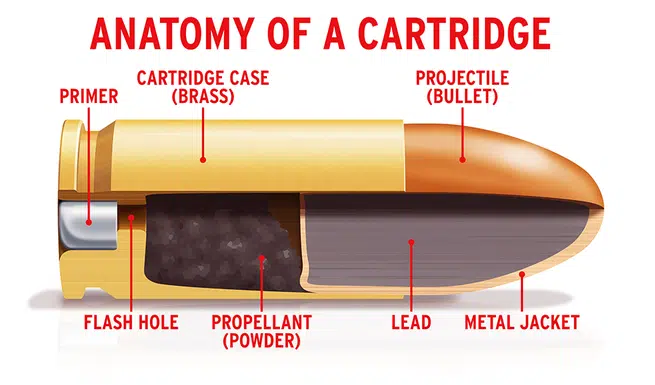

Here’s a breakdown of the different components that make up a bullet.

AR-10 Calibers

Here are the most common AR-10 calibers.

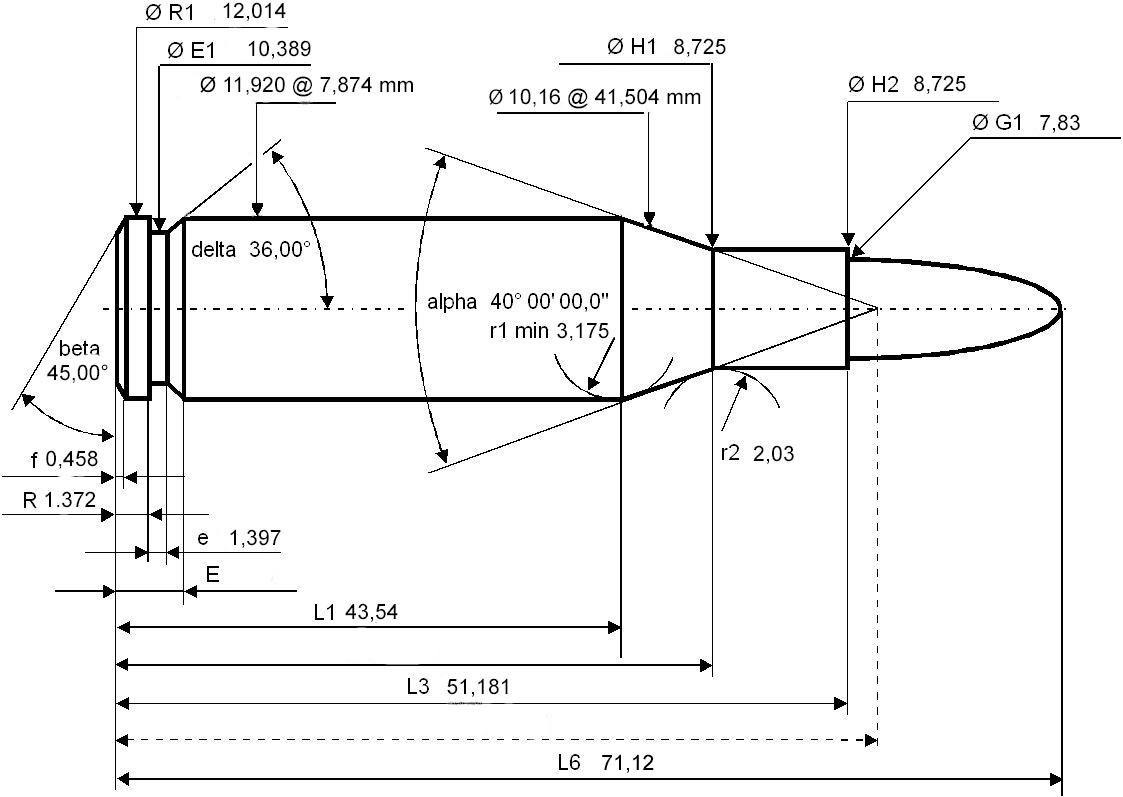

.308 Win. / 7.62 NATO

The .308 Winchester and 7.62 NATO cartridges are the most common calibers used in AR-10s.

Side note: it’s pronounced “Three O Eight” and “Seven Six Two.”

The 7.62 NATO cartridge was officially adopted by NATO in 1954 as a standardized military round, following extensive development by Winchester based on the civilian .308 Winchester cartridge.

It was designed to deliver reliable performance in automatic and semi-automatic rifles.

The 7.62 NATO’s cartridge uses a slightly thicker brass and marginally different headspace dimensions compared to the .308 Win. This helps enhance durability during sustained fire in military applications.

Military units around the world use it in rifles like the M14, FAL, and modern battle rifles for engagements where additional power and range are needed over the 5.56 NATO. It is also deployed in machine guns, such as the M240, where it delivers the power and consistency required for suppression and support fire.

Most AR-10 rifles are chambered in .308 Win., and are also compatible with 7.62 NATO ammunition. However, firing .308 Win. in a 7.62 NATO chamber can present reliability issues due to differences in headspace and pressure. Specifically, 7.62 NATO chambers have slightly longer headspace to ensure reliability during high rates of fire.

While using .308 Win. in a 7.62 NATO chamber is generally safe, the 2,000 psi difference in maximum pressure could lead to case ruptures. Play it safe and use ammunition designed for the for the intended barrel size.

• Bullet Weights: 147 to 175 grains
• Muzzle Velocity: 2,650 to 2,800 fps
• Muzzle Energy: 2,350 to 2,800 ft-lbs

.243 Winchester

The .243 Win. has been around since 1955 and is a popular choice for those seeking softer recoil and ease of handling. It was designed by necking down a .308 Winchester case to accept a .24-caliber bullet.

This development created a high-velocity, flat-shooting round that quickly gained popularity among hunters and sport shooters. The cartridge’s design allows for a range of bullet weights, typically between 55 and 100 grains, which provide adaptability for various hunting applications, particularly for medium-sized game.

This chambering works well in AR-10s, providing a mild shooting experience suitable for beginners and smaller-statured individuals.

However, the .243 Win. lacks the long-range stability and wind resistance of the .308 Win., making it more ideal for mid-range shooting rather than extended distances.

• Bullet Weights: 55 to 100 grains
• Muzzle Velocity: 3,000 to 3,500 fps
• Muzzle Energy: 1,750 to 2,500 ft-lbs

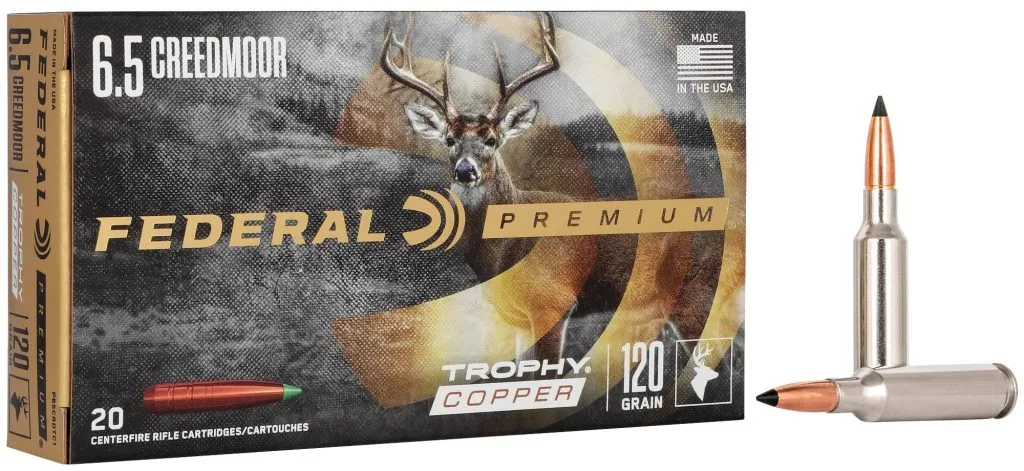

6.5 Creedmoor

6.5 Creedmoor has become one of the more popular calibers for AR-10s over the past few years. It was introduced in 2007 by Hornady and was specifically engineered for precision and long-range shooting, targeting the demands of competitive shooters.

The cartridge’s design optimizes efficiency, balancing case capacity, bullet diameter, and seating depth to achieve consistent performance across varying conditions. With a 1.920-inch case length, it holds enough powder to drive bullets with high ballistic coefficients at moderate velocities.

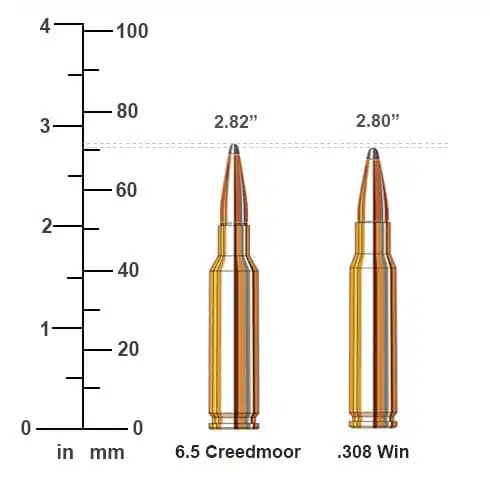

This allows the 6.5 Creedmoor to minimize drag, maintain energy over extended distances, and reduce wind drift compared to similar cartridges like the .308 Winchester.

It is used extensively in precision rifle competitions, where shooters frequently engage targets at 1,000 yards or beyond. Its flat trajectory and minimal recoil also make it a popular choice among hunters, particularly for medium-sized game such as deer, pronghorn, and even elk when paired with a heavier, purpose-built bullet.

• Bullet Weights: 120 to 143 grains
• Muzzle Velocity: 2,700 to 2,950 fps
• Muzzle Energy: 2,100 to 2,700 ft-lbs

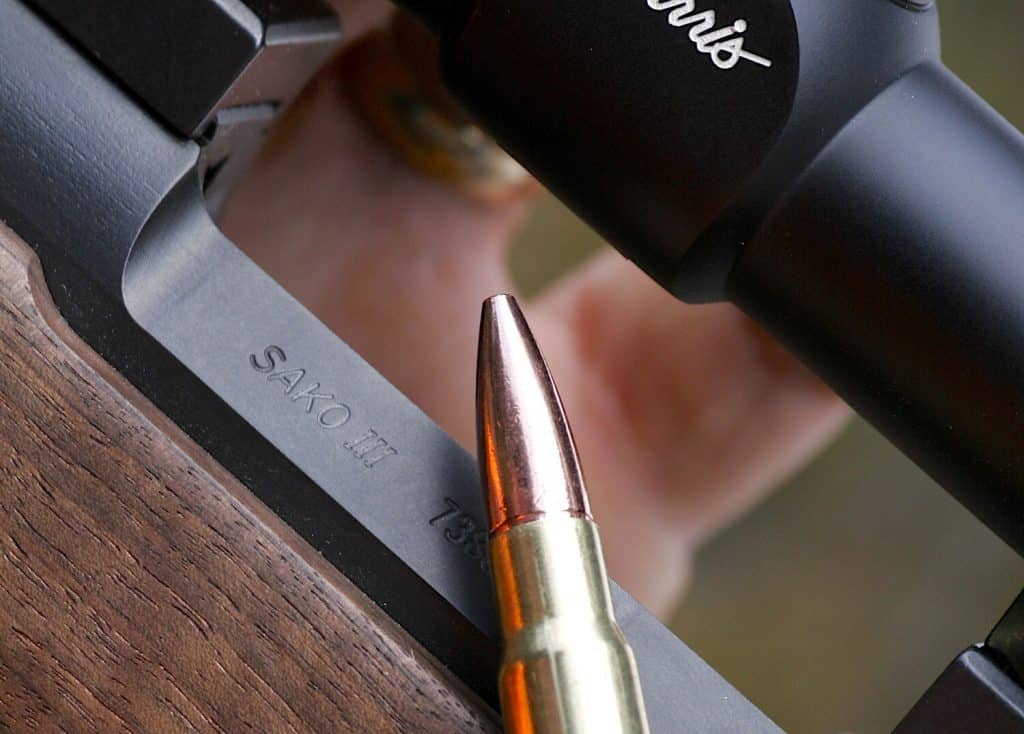

.338 Federal

The .338 Federal was introduced in 2006 as a joint development by Federal Premium and Sako, created by necking up a .308 Winchester case to accept a larger .338-caliber bullet. This design increased the cartridge’s downrange energy and impact without significantly extending its size, allowing it to be compatible with the popular AR-10 platform and other short-action rifles.

The .338 Federal provides a notable balance of power and manageable recoil, delivering higher muzzle energy than the .308 Win. while maintaining the adaptability of a short-action cartridge.

Hunters commonly choose the .338 Federal for large game such as elk, bear, and moose, where its powerful energy transfer and substantial bullet weight ensure effective penetration and quick stopping power. With its larger projectile, the .338 Federal is particularly effective within 300 yards, though its performance at longer ranges drops due to increased drag.

The cartridge is also favored for hunting in wooded or dense terrain, where shots are closer, and maximum stopping power is essential.

For shooters who want a potent cartridge with minimal recoil increase over the .308, the .338 Federal offers a strong balance for hunting applications requiring big-game stopping ability in a compact package.

• Bullet Weights: 180 to 210 grains
• Muzzle Velocity: 2,600 to 2,800 fps
• Muzzle Energy: 2,700 to 3,200 ft-lbs

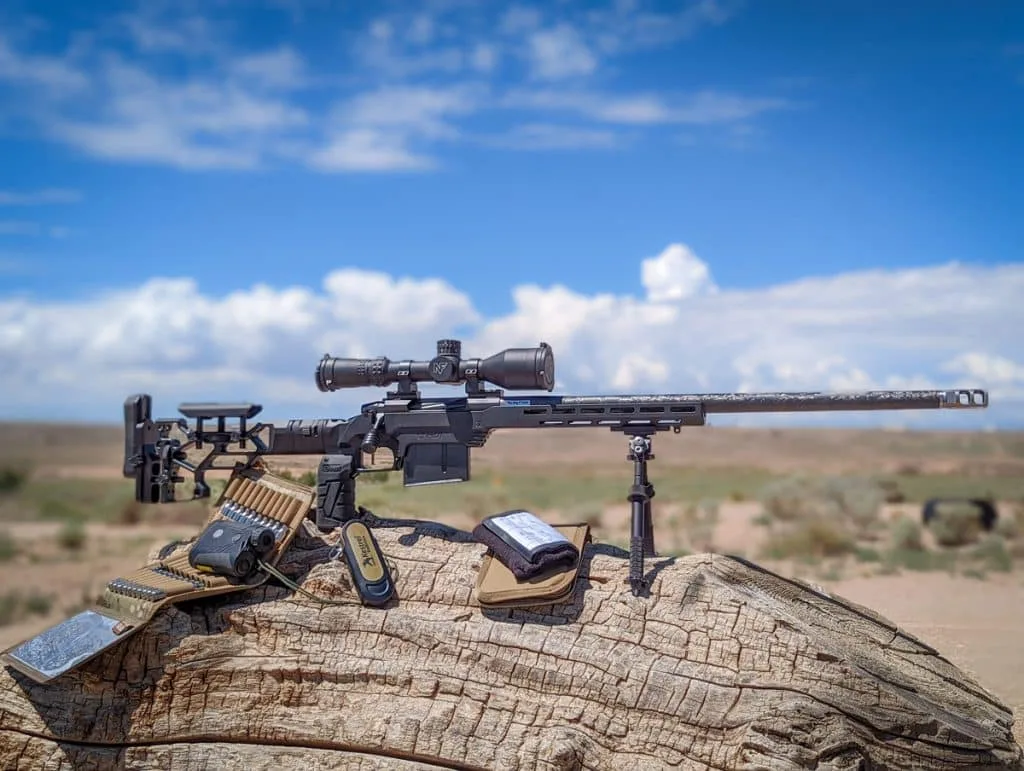

.300 Win. Mag.

The .300 Winchester Magnum, introduced in 1963, was designed by lengthening and modifying the .375 H&H Magnum case to create a high-velocity, long-action cartridge with superior long-range capabilities. It quickly became known for delivering powerful ballistics, offering a flat trajectory and high energy retention over long distances.

It is capable of launching a variety of bullet weights, from 150 to 220 grains.

The .300 Win. Mag. is great for taking large, thick-skinned game like elk, moose, and bear, where it provides the force needed for quick, ethical kills at extended ranges. It is most commonly found in bolt-action rifles.

Precision marksmen and military snipers also use this cartridge, as it can reach and maintain accuracy at distances exceeding 1,000 yards. Its ability to perform effectively in harsh environments, combined with strong downrange energy, has made the .300 Win. Mag. a staple in both civilian and military long-range shooting.

• Bullet Weights: 150 to 220 grains
• Muzzle Velocity: 2,800 to 3,200 fps
• Muzzle Energy: 3,400 to 4,000 ft-lbs

AR-10 at Long Distance

An AR-10 offers significant advantages over the AR-15 in terms of energy retention at 500 yards. Comparisons using Federal Premium Fusion loads highlight the difference; for instance, the .223 Rem. cartridge (most common in AR-15s) retains 384 ft-lbs of energy at 500 yards, while the .308 Win. hits with 1,173 ft-lbs, and the .338 Federal reaches 1,334 ft-lbs.

This power makes the AR-10 more effective for big game hunting and extended-distance applications. We also spoke with a Kansas hunting outfitter who confirmed this, stating that, while it might seem like overkill, they have had hunters who elect to shoot prairie dogs with an AR-10 due to their increased accuracy at the long distances at which you have to hunt prairie dogs.

The performance gap was further underscored during the Global War on Terrorism, when the U.S. military reintroduced .308 Win. M14 rifles to improve effectiveness in the Afghanistan terrain.

Other Calibers

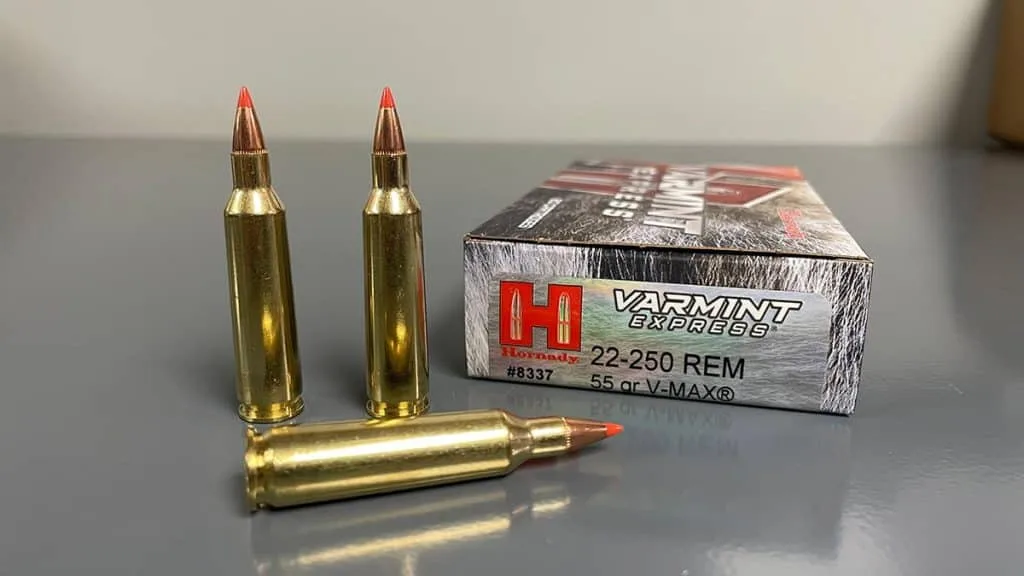

The AR-10 platform has seen an array of innovative chamberings introduced both by manufacturers and individual enthusiasts. Some of these include .22-250 Rem., 6 mm Creedmoor, .260 Rem., and .300 SAUM.

These new options appear regularly, especially at events like the Shooting, Hunting, and Outdoor Trade Show, and can also be found in custom builds from firearm hobbyists. As a result, there are numerous options for those looking to customize their AR-10 for specific purposes or experiment with novel calibers.

Choosing Your Chambering

For those considering an AR-10, a .308 Win. model offers a blend of reliability, affordability, and versatility, making it a top choice among enthusiasts. However, the firearm’s modular design allows users to switch calibers easily, enabling experimentation with different chamberings without needing an entirely new rifle setup.

This flexibility enhances the AR-10’s appeal to hunters, competition shooters, and recreational users alike, ensuring that there’s a suitable AR-10 caliber for every shooter’s preferences.
