AR-15 Direct Impingement vs Piston Gas Systems: What’s the Difference?

The evolution of rifle technology has been marked by significant milestones, one of which was the widespread adoption of piston-driven gas operating systems in military small arms.

For decades, these systems, which channel a small portion of the gunpowder’s explosive force to cycle the weapon’s action, were the standard. They came in two primary variations: the short-stroke piston, utilized in firearms like the M1 Carbine and AK-47, and the long-stroke piston, as seen in the M1 Garand. Esteemed for their robustness and reliability, these piston systems were the cornerstone of modern military firepower.

This status quo was dramatically challenged in 1957 by an innovative leap spearheaded by Eugene Stoner at Armalite.

Stoner’s creation, the direct impingement gas system, diverged from the conventional piston approach, directly harnessing the gas from a fired round to cycle the rifle’s action. This breakthrough not only propelled the M16 to become the most enduring battle rifle in U.S. military history but also helped cement the civilian model AR-15’s place as “America’s Rifle,” beloved for its adaptability and performance.

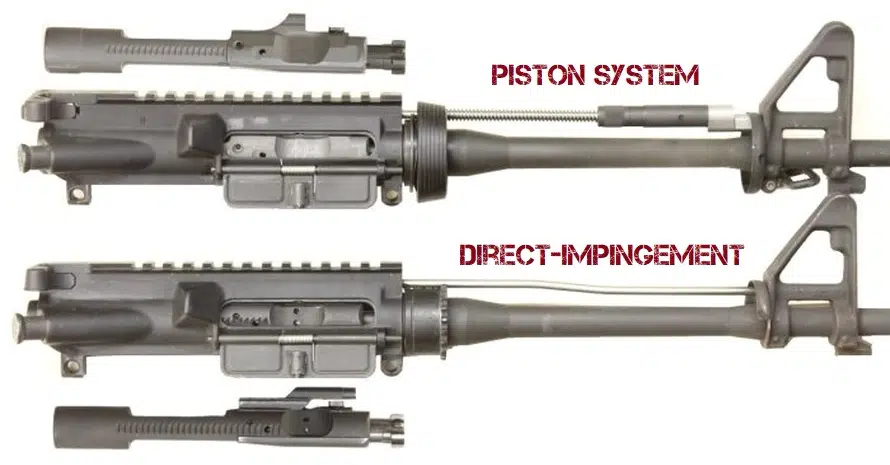

We delve into the nuanced world of AR-15 gas systems, breaking down the mechanics, benefits, and considerations of direct impingement vs piston operations to provide a comprehensive guide for anyone looking to deepen their knowledge on this iconic weapon’s functionality.

The AR-15 Gas System and How it Works

The gas-recoil functionality of today’s firearms was developed to replace the manual bolt of repeater weapons. Thus, automating the process, which made shooting at a faster rate and with better accuracy possible. There are different types of gas systems available for modern rifles. AR-15-style rifles often comes with direct impingement gas system pre-installed, while the long-stroke piston gas systems created for the M1895 rose to prominence with the development of the Kalashnikov AK-47 submachine gun.

The AR-15’s gas system is integral for the rifle’s proper function. The AR’s gas-operated system is responsible for the cycling of ammunition, which is a continuous sequence that sees the expulsion of a spent cartridge via the rifle’s ejection port, then the seating and chambering of a fresh round.

The way this process works begins with the gas that’s produced from the initial ignition of gunpowder that stokes the propulsion of a chambered bullet forward. A portion of the gas that’s leftover from that fired round is redirected through a gas port and into the gas block.

Depending on the system installed, the gas will travel down a system-specific pathway and expand to actuate the bolt carrier group (BCG) backwards, which expels the spent bullet casing. The BCG will be driven forward again to chamber a new round, and the process begins again.

But how does the BCG react to the inflow and expansion of gas? Therein lies one of the differences between the direct impingement and piston-operated gas recoil systems.

The Direct Impingement Gas System

With the AR-15’s direct impingement gas system, the excess gas—a mixture of hot gas and carbon fouling—travels from the port back to the gas block. From there, the gas enters the gas tube and is bled into the BCG where it expands, which drives the bolt carrier assembly backwards to expel the spent bullet casing through the ejection port.

The bolt carrier’s backward motion causes the spring and buffer to compress inside the buffer tube, which jolts the BCG forward into the AR rifle’s upper receiver. As the BCG travels forward, it grabs a fresh round from the magazine well and chambers it. The rifle is now in battery and ready to fire.

The AR-15 direct impingement gas system is designed to be durable and lightweight, which is not only tactically ideal for sustained carry scenarios in the field, but it also boasts a smoother recoil impulse. Additionally, this softer perceived recoil can aid in sharper accuracy in both precision and competitive shooting. What’s more, these lightweight characteristics of the AR’s proprietary DI gas system are far more welcoming to newcomers than that of the beefier, skill-oriented gas piston recoil system.

This tried-and-true AR-specific gas system has not only won the trust of government agencies from law enforcement to military personnel, but it’s seen widespread adoption among civilian shooters of every skill-level and discipline. So much so, that the AR-15 platform offers a more robust assortment of maintenance options, replacement parts, and customization possibilities, which further suggests its high demand status, as well as its level of seniority in the firearms industry.

Limitations with Direct Impingement

While the direct impingement system enjoys the advantages of being widely popular among shooters of varying disciplines and more cost-effective than its competition, this specialized AR-15 gas system also has its drawbacks. DI has an inherent aversion to dust, dirt, and mud due to the inevitable carbon buildup in the BCG, but the main culprit is its own internal heat.

Which is to say, without consistent maintenance, direct impingement suffers from the siphoned hot gas that fuels the BCG. Thus, showcasing the inflexibility in its simple, but otherwise effective design.

This pressurized gas can negatively affect the use of suppressors and certain types of ammunition. For instance, suppressors have a tendency to bottleneck expelled gasses longer, which can incite incidents of over-gassing and under-gassing to occur.

Overgassing can cause the BCG to kick harder against the buffer tube, which leads to excessive recoil, while an under-gassed bolt carrier group can cause decreased bullet velocity, ejection port issues, jamming, and/or ammo-feeding malfunctions.

What’s more, these same internal gasses will see the BCG drastically heat up, which will cause the rapid accumulation of grime and carbon fouling. The presence of hot gas over time, without regular maintenance, will cause wear to the surrounding components and to the bolt carrier group itself.

The Piston-Operated Gas System

While the piston-operated gas system follows the same design scheme as its direct impingement counterpart to a certain degree, the gas from the gas block does not bleed into the BCG. Instead, the gas is diverted into a cylindrical cell that contains a piston where it expands, which then actuates the piston. Once triggered, it’s the gas-pressurized piston, rather than the gas itself, that cycles the bolt carrier group through its paces to get it back in battery for a follow-up shot.

The piston-operated gas system does not inherently have the hot gas-centric shortcoming of direct impingement. The former’s mode of operation ensures that its components remain relatively cool and free of carbon fouling. In fact, the hot gasses remain pretty much relegated to the piston’s chamber and away from the bolt carrier group altogether.

Thus, unlike direct impingement, the piston-operated gas system proves more resilient against harsh environmental rigors due to its dedicated design that promotes cooler internal temperatures.

This gas piston design feature mitigates carbon intake and buildup in the BCG, which lessens the need for constant maintenance, giving it a tactical advantage over direct impingement. The gas piston system can also better host tactical suppressors without internal gas levels becoming a concern because, unlike DI, it’s been customized with an adjustable gas block.

Drawbacks with the Gas Piston System

While it seems that, structurally, the piston-operated AR-15 gas system has a leg-up on its direct impingement equivalent, its design also has its share of significant blindspots. For one, the piston-operated system is more of a weighty proposition for operators because it adds significantly more heft to the rifle’s front end.

This extra weight can affect barrel harmonics by way of impacting rifle accuracy, which is vital especially in hectic situations that require well-timed follow-up shots. Additionally, the heavier piston gas systems see gradually more incidents of sharper recoil impulse, which can also offset on-target shooting when exactness is paramount. Furthermore, a piston gas system-enabled rifle, while still viable at close and mid range, shows its limitations at longer distances.

Lastly, implementing the piston-operated gas system into an AR’s loadout comes with a premium price tag. Namely, its complex components are less interchangeable than the more uniform parts that are readily available for the direct impingement system. Less of a demand means limited market availability, which suggests that finding replacement parts for the more intricate piston gas system will be somewhat of a challenge for operators that choose to add it to their builds.

AR Gas Systems Innovations and Upgrades

We want to be clear, the aforementioned functional liabilities of both systems, whether they be due to shortcomings in design or an outright system failure are indeed the worst case scenarios, as these events are not common and are usually the result from mishandling and user error.

That said, the direct impingement and gas piston systems have seen several refinements to their methodology to address system adjustments and environmental factors. These new innovations ensure system reliability, weight reduction, accuracy, and more streamlined maintenance practices.

Direct Impingement Improvements

From its adoption in the 1960s as part of the M16 rifle, direct impingement has seen a number of modernizations to foster more flexibility in a gas system that’s known for its uncompromising design. This change-of-course in methodology, however, didn’t begin with the gas system, but with the AR-15 itself.

With the application of coatings and finishes like QPQ Nitride and nickel-boron, to name a few, helped to shore up the rifle’s exterior, which in turn underpinned the DI gas system by enhancing its reliability and longevity. What’s more, the AR’s gas ports have been optimized to host varying barrel lengths and differently weighted ammunition types, while increasing its ability to withstand the more gnarly environmental influences of the field.

Furthermore, the AR platform has since introduced adjustable gas blocks that allow operators to tweak their rifle’s gas output so that they can readily use different ammo that was once a no-no. This design adjustment also invites shooters to fashion their rifle’s business end with suppressors without the apprehension that overgassing or under-gassing may stymie their follow-up volley of shots.

Gas Piston Renovations

From its development for the Browning M1895 to its latter implementation in the Russian-born Kalashnikov AK-47, the gas-operated piston system has gone through a bevy of changes to meet the needs of the weaponry of today by integrating modularity and modern weight-saving technology to its design scheme. This development method began by addressing its most apparent drawback: its stubbornly reciprocating level of mass.

As seen with the G36 and F2000, the development of newer short-stroke piston-operated rifles enjoy lighter, more balanced frames with a mitigated amount of recoil for easier handling than its bulkier long-stroke AK-47 counterpart. Additionally, barrel fluting has also become a popular option for operators employing the gas piston on their builds, not just from an aesthetic standpoint, but from that of significant weight reduction.

What’s more, manufacturers have started using more lightweight materials to build pistons, both long and short, which helps to cut down maintenance needs on internal parts, as well as reinforcing heat resistance.

While it’s long since been understood that the gas piston system has been ported to fit the AR platform, it cannot be overstated that this newfound modularity between these competing gas systems has ultimately increased the versatility and garnered a wider appeal for the AR-15 weapons system as a whole.

General Maintenance

Even the most sophisticated direct impingement gas system will need to be regularly maintained to keep it performing optimally. Failure to do so can cause your rifle to seize, subject it to the effects of corrosion and rust, or it can dangerously malfunction, causing injury or death.

CAT Outdoors was founded on the cleaning and maintenance of the AR-15 BCG. The CAT M4 Tool should be a staple of any cleaning kit, as it is the most effective tool on the market for scraping carbon buildup and fouling from the bolt carrier group. Looking for a deeper clean? Our Talon Tool lug scraper, which works in congruence with our AR-15 Bore Brush Kit, removes carbon buildup and excess from inside the barrel lugs, leaving its interior clean and obstruction-free.

Better yet, you can get both tools as a part of our Field Kit.

Which Gas System is Best?

While each of these AR-15 gas systems have their share of advantages and limitations, they both have the ingrained ability to successfully cycle the rifle. At the end of the day, there is no “best” right answer when comparing direct impingement with the gas-operated piston because they both fulfill a necessary function for one of the most sought after American weapons systems ever created.

So, like with most things gun-related, it’s a question of budget, intention, and most importantly, preference.

 If your AR-15 project is a budget build or a lightweight hunting, range, or competition gun, direct impingement is your best bet. DI is also very capable in terms of fieldwork, battle applications, and situations involving high-volume fire situations, so long as you’re willing to perform regular maintenance on your rifle. Moreover, there’s a wider market for direct impingement so replacement parts that are uniform to the AR platform are easy to come by.

If you’re building an AR for strictly tactical and environmental proficiency and don’t mind shelling out a few clams in the process, you may want to go with the gas piston, so long as your aim isn’t impeded by the extra weight at the barrel’s business end. Furthermore, owners of a piston gas system will need to do a fair amount of research to find components that suit their particular build, as not all piston systems are friendly with outside furniture.

More for AR-15 Owners

What is an LPVO? | Understanding Low Power Variable Optics

In recent years, the Low Power Variable Optic, or LPVO, has become a staple in the world of modern optics. From hunters seeking versatility in the field to competitive shooters…

LPVO vs Red Dot for AR-15: [Benefits, Differences & How to Pick]

When it comes to firearms, there’s no argument that the AR-15 is widely regarded as one of the most versatile rifles ever designed, capable of performing well from point-blank to…

Aero Precision M4E1 Upper Receiver Review: Best Bang for Your Buck?

We independently test and review everything we recommend. When you buy through our links, we may earn a commission, which helps support our testing. When it comes to assembling or…

Best AR-15 Accessories & Furniture [Stocks, Grips, Bipods & More]

We independently test and review everything we recommend. When you buy through our links, we may earn a commission, which helps support our testing. Ever see a kid playing with…

What is an Upper Receiver? [The History & Different Types]

If you’re new to the world of AR-15s and firearms, there’s a lot of terminology to become accustomed to. One of those keywords you’ll hear a lot of talk about…

SIG Romeo 5 Review: Best Bang for the Buck Red Dot?

We independently test and review everything we recommend. When you buy through our links, we may earn a commission, which helps support our testing. Looking for your first red dot…

Final Thoughts on Direct Impingement vs Piston Gas Systems

When it’s all said and done, both of these AR-15 gas systems have seen military deployment and both have won competitions. Both systems deserve their due praise for their individual innovations and accomplishments within the history of semi-automatic weapons—in this case, the AR-15.

So, which system wins out in the end? That’s a question best answered by you.

Which AR gas system do you prefer? Tell us about it in the comments.

Aaron Basiliere

Aaron Basiliere is a staunch 2A advocate, a firearms researcher, and one of the principal content creators here at CAT Outdoors. He has written in multiple professional capacities for the last 16 years. He has a BA in English Writing from the University of Wisconsin. When not writing for CAT Outdoors he enjoys drinking coffee, watching documentaries, and spending time with his family and friends.
